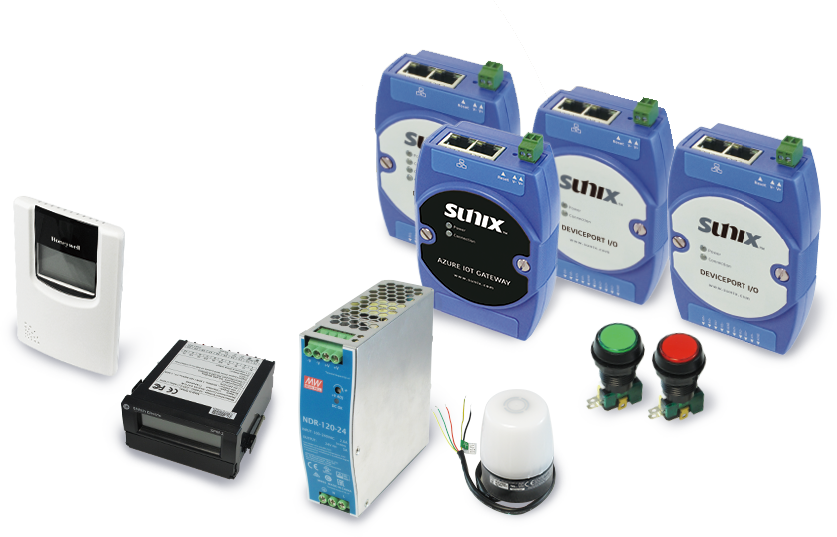

KSF1001G
IoT Development Kit (Designed to work with Microsft IoT Central)
- All-in-one IoT Kit for Rapid Deployment
- Code-free, No Programming
- Easy to use, Setup in Hours
- Simple IoT Kit for Non-developers
Introduction
SUNIX IoT development kit simplify retrieving data from sensors and devices in the cloud, enabling workers and managers to monitor equipment. This type of equipment monitoring can be catered to the needs of a company (e.g. energy and environmental monitoring).
It’s compliant with any interface of sensors. Setting up SUNIX IoT development kit only takes a few simple steps. It’s available for an extremely low monthly leasing fee, eliminating the costs associated with procuring and maintaining server hosts.
It’s compliant with any interface of sensors. Setting up SUNIX IoT development kit only takes a few simple steps. It’s available for an extremely low monthly leasing fee, eliminating the costs associated with procuring and maintaining server hosts.
Specifications
EZG1200 Azure IoT Central Gateway Specifications
It is designed to work with Microsoft Azure IoT Central. The customer leverage SUNIX communication protocol for establishing direct connections with Azure IoT cloudDPAD02HTP Serial to Ethernet Port Specifications
Serial Interface
| Number of ports | 2 | ||
| Serial Standards | RS-422/485 | ||
| Connector | Terminal Block | ||
| Serial Signals |
RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485: Data+, Data-, GND |
||
| Stop Bits | 1, 1.5, 2 | ||
| Parity | None, Even, Odd, Space, Mark | ||
| Flow Control | XON/XOFF (Software) | ||
| Baud Rate | 50bps ~921.6Kbps | ||
EZR5002 2-ch DI / 4-ch DO Specifications
Digital Input
| Channels | 2 channels | ||
| Dry Contact |
Logic Level 0: Open Logic Level 1: Close to GND |
||
| Wet Contact |
Logic Level 0: 0 to 3V Logic Level 1: 10 to 50V |
||
| Input Resistance | 10㏀ | ||
| Isolation | 1k VDC | ||
| Over-Voltage Protection | 70VDC | ||
Digital Output
| Channels | 4 channels | ||
| Output Type | NPN | ||
| Output Voltage Range | 3.5-30V | ||
| Normal Output Current | 500mA per Channel | ||
| Isolation | 1k VDC | ||
| Startup Value Setting | Yes | ||
| Communication Safety Value Setting | Yes | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
EZR5231 4-ch AI Specifications
Analog Input
| Channels | 4 channels | ||
| Voltage Range |
±100 mV ±500 mV, ±1 V , ±5 V, ±10 V 0~100 mV, 0~500 mV, 0~1 V , 0~5 V, 0~10 V |
||
| Current Range | ±20mA, 0~20mA | ||
| Sampling Rates | 20 Samples/Second Total | ||
| Input Impedance |
100MΩ： ±100mV, ±500mV, ±1V,0~100mV, 0~500mV, 0~1V 2.4MΩ： ±5V, ±10V,0~5V, 0~10V 120Ω：±20mA, 0~20mA |
||
| Resolution | 16-bit | ||
| Accuracy | ±0.1% FSR | ||
| Span Drift | ±25 ppm/℃ | ||
| Zero Drift | ±6 μ V/℃ | ||
| Input Voltage Protection | Built-in TVS/ESD Protection | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
Common Specifications for Communication Layer Devices
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Physical Characteristics
| Dimensions | 72.1 x 108 x 33.7 mm (2.83 x 4.25 x 1.32 in) |
| Weight | 118 g |
| Mounting | DIN rail or wall |
Environmental Limits
| Operation Temperature | -25 to 70°C (-13 to 158°F) |
| Operation Humidity | 5 to 95% RH(non-condensing) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
Standards and Certifications
| EMC | EN 55032, EN 550235 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 |
| ESD | Contact: 4 kV; Air: 8 kV |

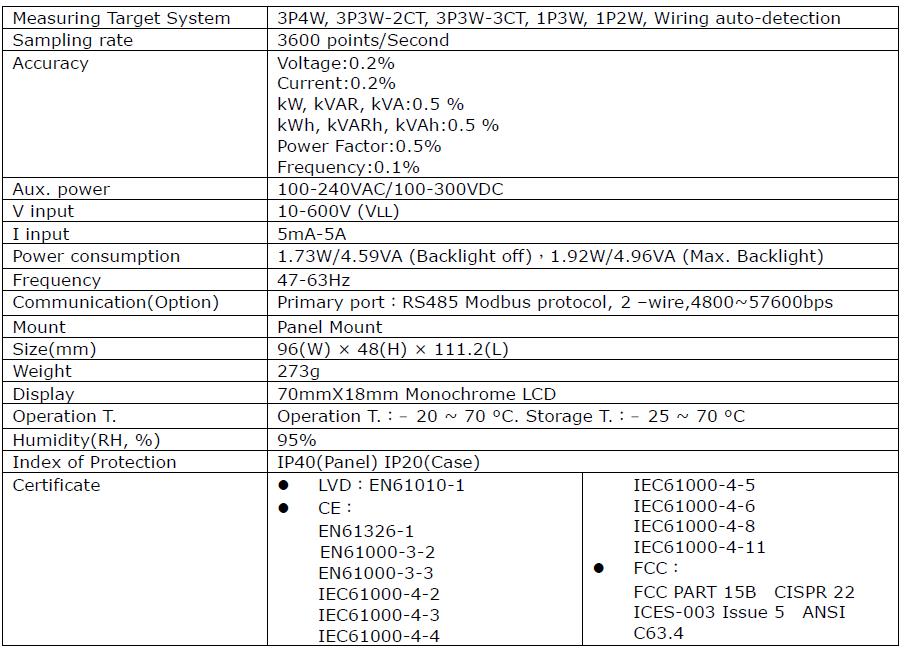

Power Meter (RS-485) Specifications
 |

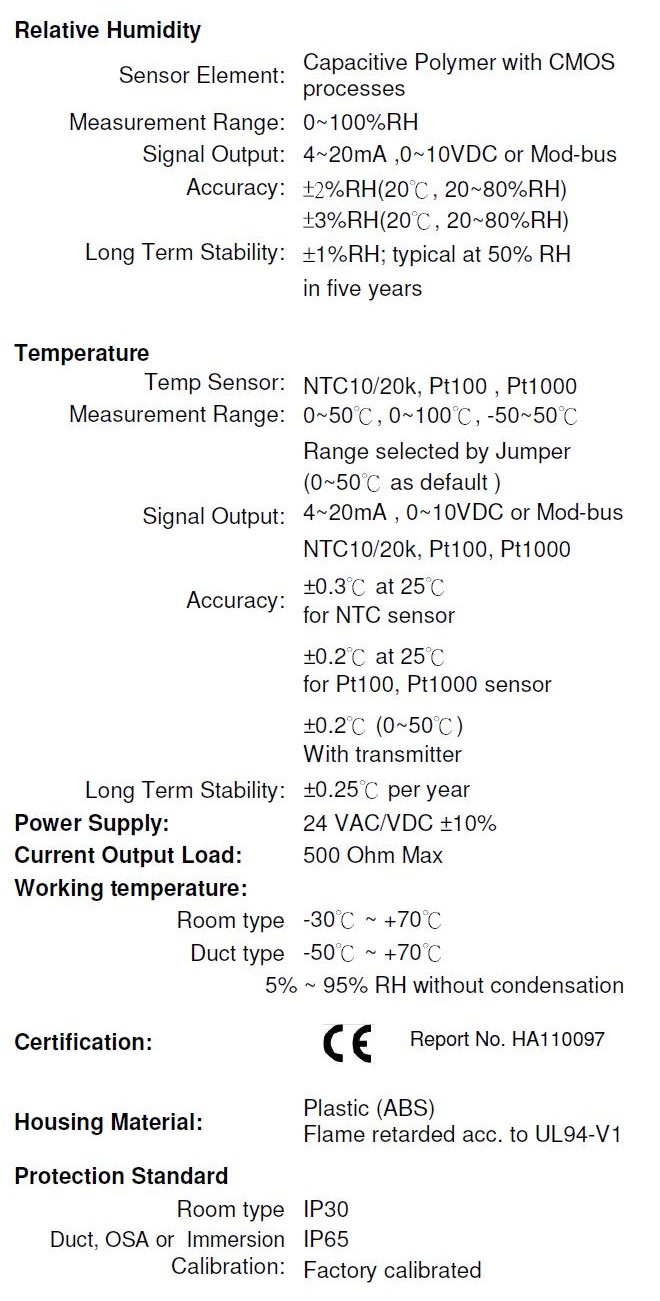

Temp. & RH sensor (Analog) Specifications
 |
Multi-Color Signal Light (Digital) Specifications
_Specifications.jpg) |
Green & Red Button (Digital) Specifications
| Dimensions | 39.8(W)x65.5(H)mm | ||
Power Supply Specifications
 |
Support
Download Manual
| Manual | KSF1001G IoT Development Kit User Manual |
|
| Version | Ver. 2.0 | |
| Update | 2021-01-12 11:55:58 | |
| Size | 3.9MB |
| Manual | ECS-Add Device Setting Instruction |
|
| Version | Ver. 1.0 | |
| Update | 2020-03-18 16:16:10 | |
| Size | 1.3MB |
| Manual | ECS-Create Dashboard |
|
| Version | Ver. 2.0 | |
| Update | 2020-10-06 14:06:21 | |
| Size | 648.2KB |
| Manual | ECS-Gateway IP Configuration |
|
| Version | Ver. 1.0 | |
| Update | 2020-05-21 15:09:39 | |
| Size | 636.4KB |
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 3.0 | |
| Update | 2021-10-28 16:26:32 | |
| Size | 2.5MB |
| Manual | EZG1200 Gateway Manual |
|
| Version | Ver. 1.0 | |
| Update | 2021-08-27 10:13:44 | |
| Size | 1.6MB |
Download Datasheet
| Datasheet | KSF1001G Datasheet |
|
Download Guide
| Guide | KSF1001G Quick Installation Guide |
|
