DPKP01H00 (phased out)

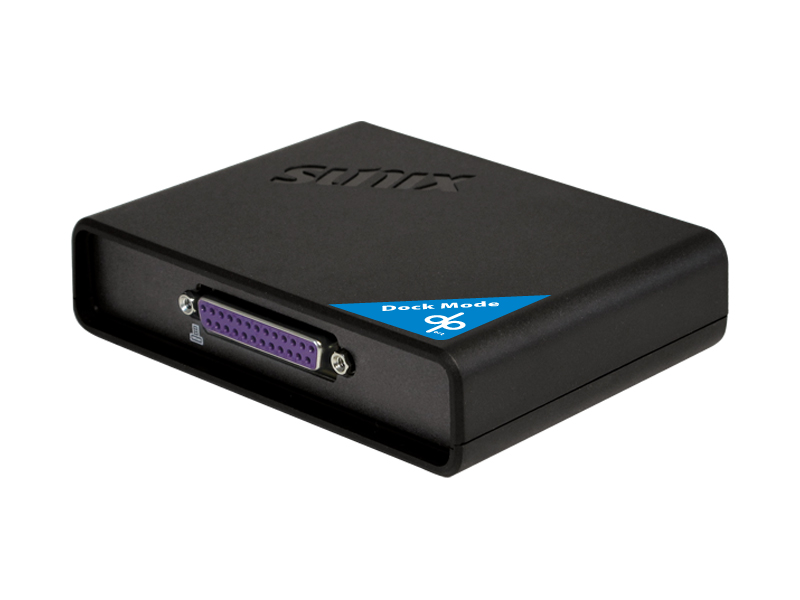

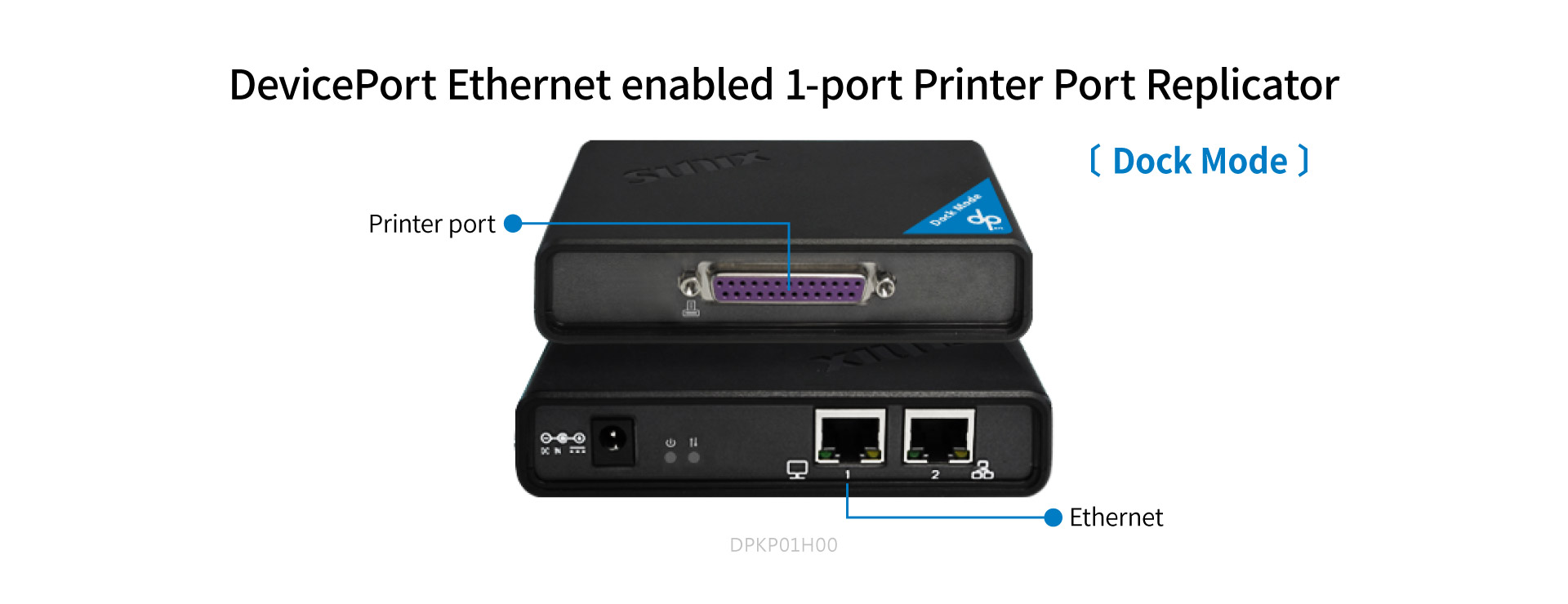

DevicePort Dock Mode Ethernet enabled Printer Port Replicator
  • Expands one additional Printer LPT ports over Ethernet networking.
  • Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
  • DevicePort® Dock mode supports secured connection between PC host and DevicePort®.(*Note 1)
  • Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.
  • Accesses tradition LPT port by using existing software and AP.(*Note 2)
  • Low power consumption design for Green Environment.
  • Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.

Introduction

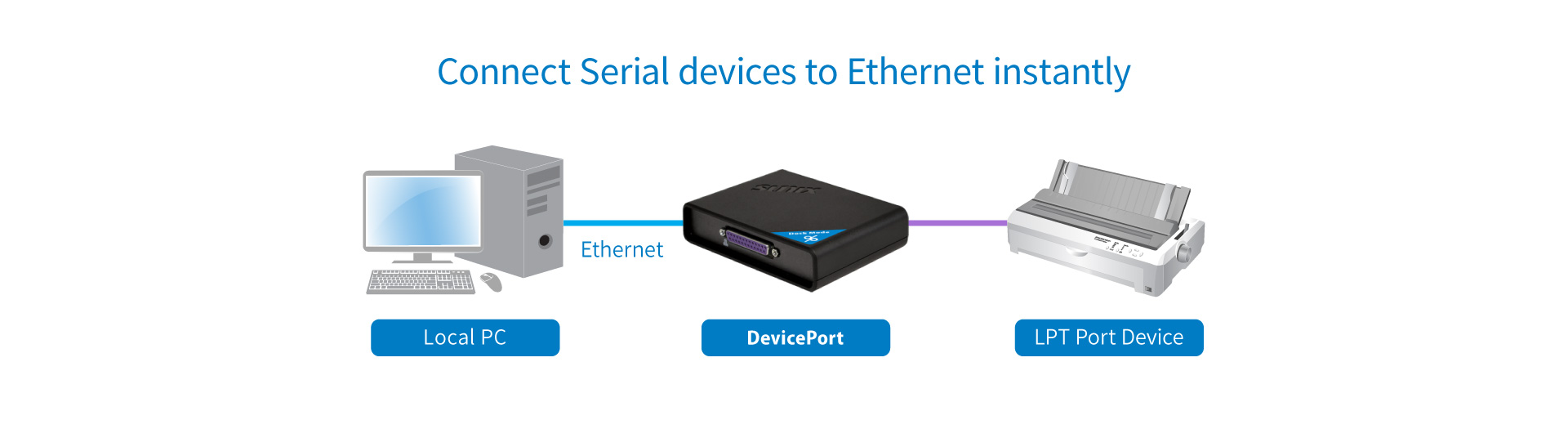

SUNIX DevicePort is the ideal choice to enable your current Legacy I/O devices networking. DPKP01H00 allows users to expand printer port over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. It is provided with SUNIX DPL2000Q High-Performance Ethernet-Printer controller and exclusive I/O redirection technology. DevicePort DPKP01H00 creates real time communication physical LPT port and Ethernet-LPT port hot-plug capability; user can expand legacy port easily without complex software configuration that improves deployment efficiency to achieve greater convenience for commercial automation applications.

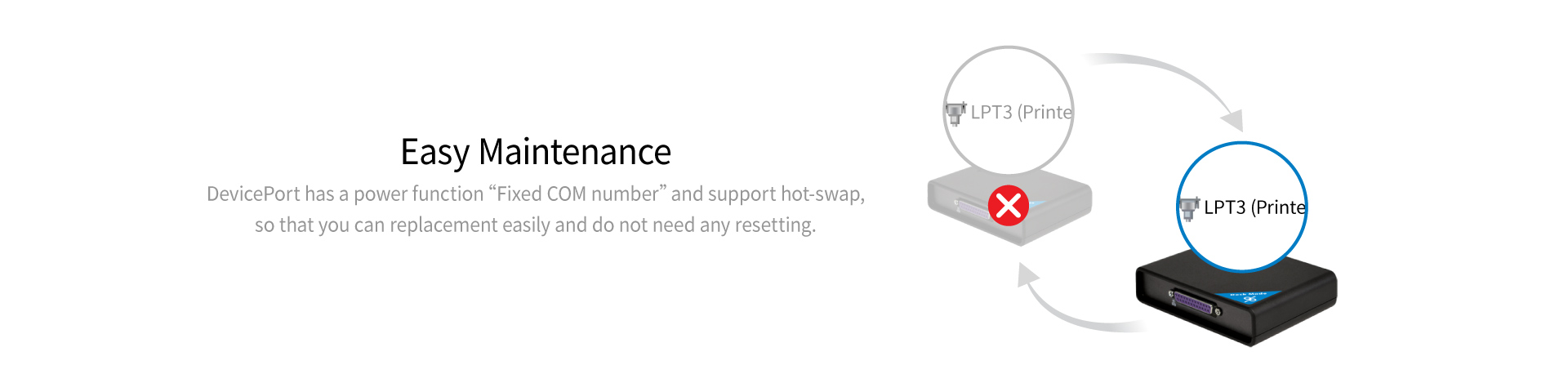

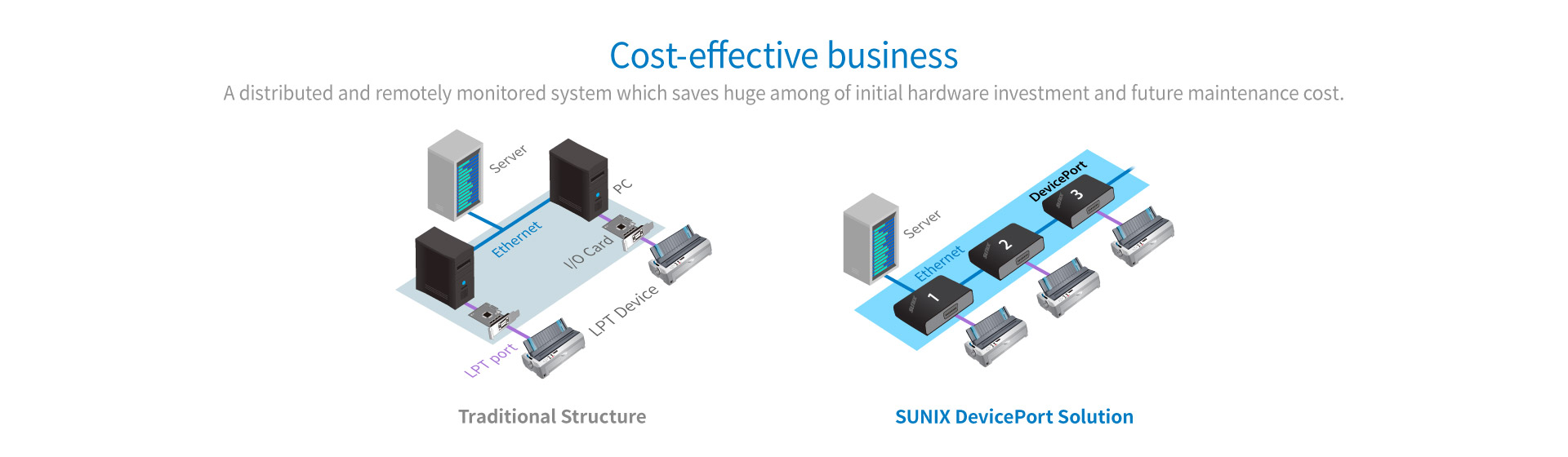

Features







Film

Specifications

Parallel Communication

Interface IEEE1284  Printer Support(*Note 3)
Controller SUNIX DPL2000Q
No. of Port 1-port
FIFO 1Kbyte Hardware / per port
Speed Maximum 2.7MBps
PCB Connector DB25 Female
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge

Ethernet Communication

Number of Ports 2-port (*Note 1)
Upstream to Ethernet Switch
Downstream to PC Host
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack

Driver Support

Windows Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 146.3g
Dimensions 121x81.93x27(mm) , 4.7x3.2x1.0(inch)

Note:
1. To prevent on-line spy recording, DevicePort Dock Mode limits specific Ethernet port connection, and it does not works on router or switch operation.
2. LPT port does not support LPT Key Locker and other Parallel devices, but Printer only. It does not support legacy 278/378/3BC ISA address either.

Accessories

Including Accessories

Power Jack to USB TyepA Male Cable
  • (ψ5.5 *ψ2.0 / 120cm)
  • Partner No.: 1WDC-Y1120G4100000
  • 1 pcs

Support

Download Manual

Manual DevicePort Dock Printer Port
Version Ver 2.0
Update 2015-11-12 09:45:05
Size 2MB

Download Datasheet

Datasheet DPKP01H00 Datasheet

Download Guide

Guide Dock-Printer
