CCV50PB

USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
  • One USB Type­C connection to extend video and Ethernet from your Notebook PC accessories.
  • Supports USB Power Delivery 2.0 that deliveries power along with data over a tethered USB­-C cable.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type­C Standard Rev1.0.
  • Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
  • Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
  • Compatible with Gigabit Ethernet networks and powered via USB.
  • Drivers free under Apple MAC, Google Chromebook, and Windows.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.



Introduction

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4­in­1 USB 3.0 device docking station, converting a single USB­C port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ­C equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USB­C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type­C tethered cable. This small, multiple­interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®­based PC, Apple® MAC®­OS, and Google® Chrome operation system.


Features

UNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

Use either the HDMI port or VGA port for video output & office presentation.

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight


Application



Specifications

Hardware

Model CCV50PB
Description USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface
USB Type­C
USB Type­C Alternate Mode
Output Interface USB Power Charging Type­C x 1­port
USB 3.0 Type­A x 1­port
Gigabit Ethernet x 1­port
VGA(RGB) x 1­port
HDMI Ver1.4 x 1­port
LED indicator Green for USB Link Ready
Power Consumption USB Bus Power 2W @ 5VDC
(board only without power output to device)

USB Communication

Interface USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port USB Type­A Female Receptacle
USB 3.0(5Gbps), High Speed(480Mbps),
Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port 1­port
Power source
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 5/20VDC
Power output USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection USB Type­A Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard IEEE 802.3/ 802.3u/ 802.3ab
Interface Gigabit Ethernet
10/100/1000 Mbps with Auto MDIX
No. of Port 1­port
PCB Connector RJ45 with LED Indication

Video and Audio Communication

Mode Extend mode, Mirror mode, Screen Rotation mode
Standard HDMI Ver1.4b
VGA RGB
Video HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support

Resolution

Name

Refresh Rate

640x480

VGA

60

800x600

SVGA

60

1024x768

XGA

60

1280x720

720p

60

1280x768

WXGA+

60

1280x800

WXGA

60

1280x1024

SXGA

60

1366x768

WXGA+

60

1400x1050

SXGA+

60

1600x900

­

60

1600x1200

UXGA

60

1680x1050

WSXGA+

60

1920x1080

1080p

60

1920x1200

WUXGA

60

Audio Digital Audio output over HDMI connectivity
Note: VGA does not support audio output
PCB Connector Standard HDMI Female x 1­port
VGA D­Sub 15­pin Female x 1­port

Driver Support (Driver Free)

Windows Windows 10 (32/64­bit) or above
APPLE MAC MAC OS X 10.10 (Yosemite) or above
Google Chrome Chrome OS Version 42.x or above



Environment



Operation temp. 0 °C ~ 60 °C (32­140°F)
Operation humidity 5 to 95% RH
Storage temp ­20 °C ~ 70 °C (­4~158°F)

Standards and Certifications

EMC EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Physical Characteristics

Weight 50g (1.8oz)
Case Material ABS (plastic)

Dimension

102(L)x66(W)x16(H) mm
Tethered Cable length: 150mm



Support

Download Manual

Download Datasheet

Datasheet CCV50PB Datasheet

Download Driver

Driver RTL8153_Windows 10
Version Win10_10007
Update 2016-07-11 13:38:22
Size 9.1MB
OS
Windows 10 32/64 bit
Driver RTL8153_MAC
Version 1.0.15
Update 2016-07-11 13:27:32
Size 181.4KB
OS
MAC 10.6 ~ 10.11

CCV50PB

USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
  • One USB Type­C connection to extend video and Ethernet from your Notebook PC accessories.
  • Supports USB Power Delivery 2.0 that deliveries power along with data over a tethered USB­-C cable.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type­C Standard Rev1.0.
  • Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
  • Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
  • Compatible with Gigabit Ethernet networks and powered via USB.
  • Drivers free under Apple MAC, Google Chromebook, and Windows.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.



Introduction

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4­in­1 USB 3.0 device docking station, converting a single USB­C port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ­C equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USB­C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type­C tethered cable. This small, multiple­interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®­based PC, Apple® MAC®­OS, and Google® Chrome operation system.


Features

UNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

Use either the HDMI port or VGA port for video output & office presentation.

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight


Application



Specifications

Hardware

Model CCV50PB
Description USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface
USB Type­C
USB Type­C Alternate Mode
Output Interface USB Power Charging Type­C x 1­port
USB 3.0 Type­A x 1­port
Gigabit Ethernet x 1­port
VGA(RGB) x 1­port
HDMI Ver1.4 x 1­port
LED indicator Green for USB Link Ready
Power Consumption USB Bus Power 2W @ 5VDC
(board only without power output to device)

USB Communication

Interface USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port USB Type­A Female Receptacle
USB 3.0(5Gbps), High Speed(480Mbps),
Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port 1­port
Power source
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 5/20VDC
Power output USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection USB Type­A Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard IEEE 802.3/ 802.3u/ 802.3ab
Interface Gigabit Ethernet
10/100/1000 Mbps with Auto MDIX
No. of Port 1­port
PCB Connector RJ45 with LED Indication

Video and Audio Communication

Mode Extend mode, Mirror mode, Screen Rotation mode
Standard HDMI Ver1.4b
VGA RGB
Video HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support

Resolution

Name

Refresh Rate

640x480

VGA

60

800x600

SVGA

60

1024x768

XGA

60

1280x720

720p

60

1280x768

WXGA+

60

1280x800

WXGA

60

1280x1024

SXGA

60

1366x768

WXGA+

60

1400x1050

SXGA+

60

1600x900

­

60

1600x1200

UXGA

60

1680x1050

WSXGA+

60

1920x1080

1080p

60

1920x1200

WUXGA

60

Audio Digital Audio output over HDMI connectivity
Note: VGA does not support audio output
PCB Connector Standard HDMI Female x 1­port
VGA D­Sub 15­pin Female x 1­port

Driver Support (Driver Free)

Windows Windows 10 (32/64­bit) or above
APPLE MAC MAC OS X 10.10 (Yosemite) or above
Google Chrome Chrome OS Version 42.x or above



Environment



Operation temp. 0 °C ~ 60 °C (32­140°F)
Operation humidity 5 to 95% RH
Storage temp ­20 °C ~ 70 °C (­4~158°F)

Standards and Certifications

EMC EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Physical Characteristics

Weight 50g (1.8oz)
Case Material ABS (plastic)

Dimension

102(L)x66(W)x16(H) mm
Tethered Cable length: 150mm



Support

Download Manual

Download Datasheet

Datasheet CCV50PB Datasheet

Download Driver

Driver RTL8153_Windows 10
Version Win10_10007
Update 2016-07-11 13:38:22
Size 9.1MB
OS
Windows 10 32/64 bit
Driver RTL8153_MAC
Version 1.0.15
Update 2016-07-11 13:27:32
Size 181.4KB
OS
MAC 10.6 ~ 10.11

CCV50PB

USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
  • One USB Type­C connection to extend video and Ethernet from your Notebook PC accessories.
  • Supports USB Power Delivery 2.0 that deliveries power along with data over a tethered USB­-C cable.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type­C Standard Rev1.0.
  • Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
  • Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
  • Compatible with Gigabit Ethernet networks and powered via USB.
  • Drivers free under Apple MAC, Google Chromebook, and Windows.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.



Introduction

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4­in­1 USB 3.0 device docking station, converting a single USB­C port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ­C equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USB­C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type­C tethered cable. This small, multiple­interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®­based PC, Apple® MAC®­OS, and Google® Chrome operation system.


Features

UNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

Use either the HDMI port or VGA port for video output & office presentation.

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight


Application



Specifications

Hardware

Model CCV50PB
Description USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface
USB Type­C
USB Type­C Alternate Mode
Output Interface USB Power Charging Type­C x 1­port
USB 3.0 Type­A x 1­port
Gigabit Ethernet x 1­port
VGA(RGB) x 1­port
HDMI Ver1.4 x 1­port
LED indicator Green for USB Link Ready
Power Consumption USB Bus Power 2W @ 5VDC
(board only without power output to device)

USB Communication

Interface USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port USB Type­A Female Receptacle
USB 3.0(5Gbps), High Speed(480Mbps),
Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port 1­port
Power source
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 5/20VDC
Power output USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection USB Type­A Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard IEEE 802.3/ 802.3u/ 802.3ab
Interface Gigabit Ethernet
10/100/1000 Mbps with Auto MDIX
No. of Port 1­port
PCB Connector RJ45 with LED Indication

Video and Audio Communication

Mode Extend mode, Mirror mode, Screen Rotation mode
Standard HDMI Ver1.4b
VGA RGB
Video HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support

Resolution

Name

Refresh Rate

640x480

VGA

60

800x600

SVGA

60

1024x768

XGA

60

1280x720

720p

60

1280x768

WXGA+

60

1280x800

WXGA

60

1280x1024

SXGA

60

1366x768

WXGA+

60

1400x1050

SXGA+

60

1600x900

­

60

1600x1200

UXGA

60

1680x1050

WSXGA+

60

1920x1080

1080p

60

1920x1200

WUXGA

60

Audio Digital Audio output over HDMI connectivity
Note: VGA does not support audio output
PCB Connector Standard HDMI Female x 1­port
VGA D­Sub 15­pin Female x 1­port

Driver Support (Driver Free)

Windows Windows 10 (32/64­bit) or above
APPLE MAC MAC OS X 10.10 (Yosemite) or above
Google Chrome Chrome OS Version 42.x or above



Environment



Operation temp. 0 °C ~ 60 °C (32­140°F)
Operation humidity 5 to 95% RH
Storage temp ­20 °C ~ 70 °C (­4~158°F)

Standards and Certifications

EMC EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Physical Characteristics

Weight 50g (1.8oz)
Case Material ABS (plastic)

Dimension

102(L)x66(W)x16(H) mm
Tethered Cable length: 150mm



Support

Download Manual

Download Datasheet

Datasheet CCV50PB Datasheet

Download Driver

Driver RTL8153_Windows 10
Version Win10_10007
Update 2016-07-11 13:38:22
Size 9.1MB
OS
Windows 10 32/64 bit
Driver RTL8153_MAC
Version 1.0.15
Update 2016-07-11 13:27:32
Size 181.4KB
OS
MAC 10.6 ~ 10.11

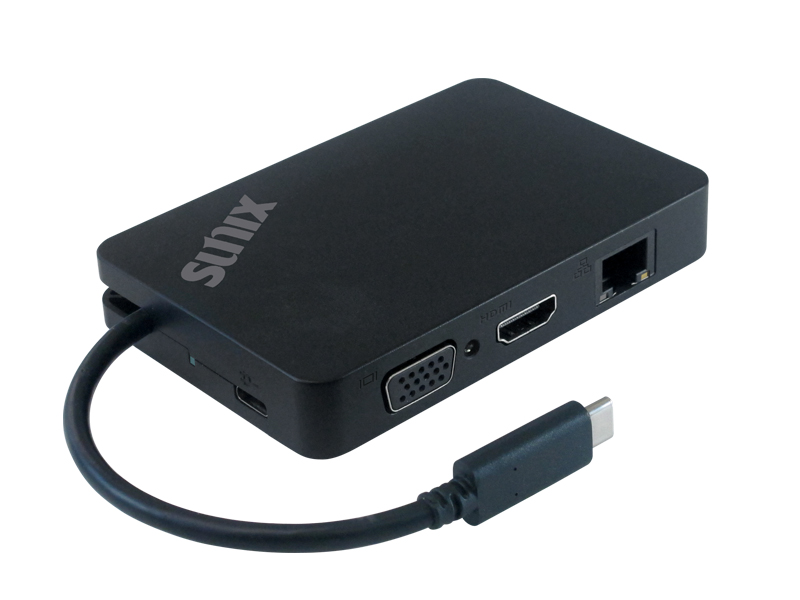

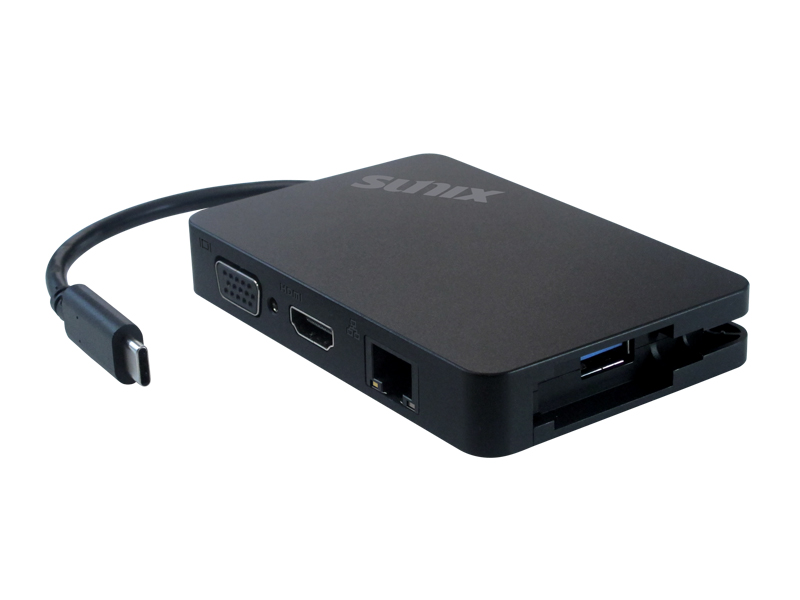

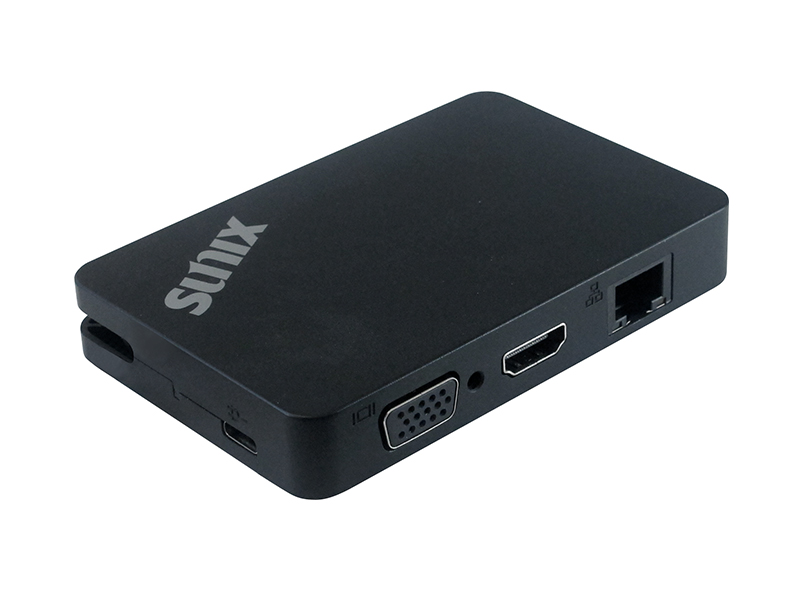

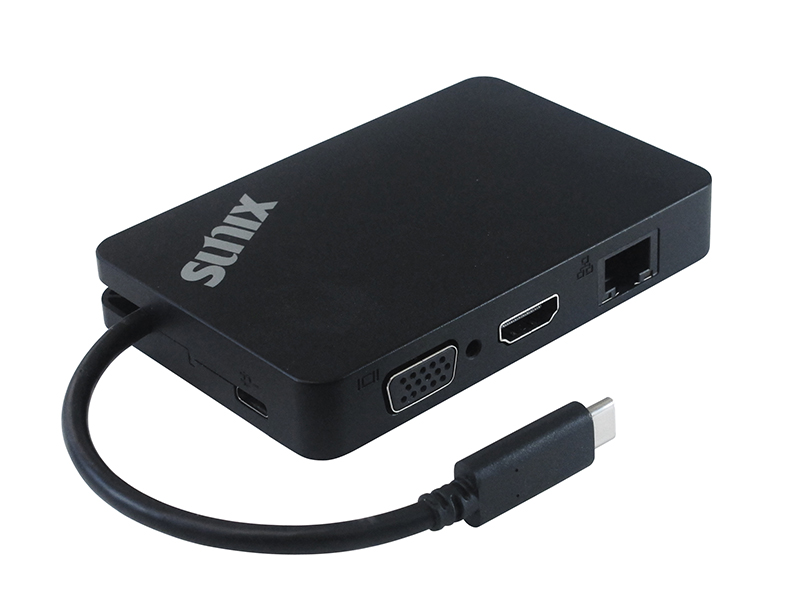

CCV50PB

USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
  • One USB Type­C connection to extend video and Ethernet from your Notebook PC accessories.
  • Supports USB Power Delivery 2.0 that deliveries power along with data over a tethered USB­-C cable.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type­C Standard Rev1.0.
  • Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
  • Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
  • Compatible with Gigabit Ethernet networks and powered via USB.
  • Drivers free under Apple MAC, Google Chromebook, and Windows.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.



SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4­in­1 USB 3.0 device docking station, converting a single USB­C port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ­C equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USB­C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type­C tethered cable. This small, multiple­interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®­based PC, Apple® MAC®­OS, and Google® Chrome operation system.


Introduction

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4­in­1 USB 3.0 device docking station, converting a single USB­C port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ­C equipped laptop to a complete workstation.

HDMI/VGA/Ethernet/USB 3.0 connects your USB­C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type­C tethered cable. This small, multiple­interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®­based PC, Apple® MAC®­OS, and Google® Chrome operation system.


Features

UNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

Use either the HDMI port or VGA port for video output & office presentation.

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight


Application



Specifications

Hardware

Model CCV50PB
Description USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface
USB Type­C
USB Type­C Alternate Mode
Output Interface USB Power Charging Type­C x 1­port
USB 3.0 Type­A x 1­port
Gigabit Ethernet x 1­port
VGA(RGB) x 1­port
HDMI Ver1.4 x 1­port
LED indicator Green for USB Link Ready
Power Consumption USB Bus Power 2W @ 5VDC
(board only without power output to device)

USB Communication

Interface USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port USB Type­A Female Receptacle
USB 3.0(5Gbps), High Speed(480Mbps),
Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port 1­port
Power source
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 5/20VDC
Power output USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection USB Type­A Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard IEEE 802.3/ 802.3u/ 802.3ab
Interface Gigabit Ethernet
10/100/1000 Mbps with Auto MDIX
No. of Port 1­port
PCB Connector RJ45 with LED Indication

Video and Audio Communication

Mode Extend mode, Mirror mode, Screen Rotation mode
Standard HDMI Ver1.4b
VGA RGB
Video HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support

Resolution

Name

Refresh Rate

640x480

VGA

60

800x600

SVGA

60

1024x768

XGA

60

1280x720

720p

60

1280x768

WXGA+

60

1280x800

WXGA

60

1280x1024

SXGA

60

1366x768

WXGA+

60

1400x1050

SXGA+

60

1600x900

­

60

1600x1200

UXGA

60

1680x1050

WSXGA+

60

1920x1080

1080p

60

1920x1200

WUXGA

60

Audio Digital Audio output over HDMI connectivity
Note: VGA does not support audio output
PCB Connector Standard HDMI Female x 1­port
VGA D­Sub 15­pin Female x 1­port

Driver Support (Driver Free)

Windows Windows 10 (32/64­bit) or above
APPLE MAC MAC OS X 10.10 (Yosemite) or above
Google Chrome Chrome OS Version 42.x or above



Environment



Operation temp. 0 °C ~ 60 °C (32­140°F)
Operation humidity 5 to 95% RH
Storage temp ­20 °C ~ 70 °C (­4~158°F)

Standards and Certifications

EMC EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Physical Characteristics

Weight 50g (1.8oz)
Case Material ABS (plastic)

Dimension

102(L)x66(W)x16(H) mm
Tethered Cable length: 150mm



Support

Download Manual

Download Datasheet

Datasheet CCV50PB Datasheet

Download Driver

Driver RTL8153_Windows 10
Version Win10_10007
Update 2016-07-11 13:38:22
Size 9.1MB
OS
Windows 10 32/64 bit
Driver RTL8153_MAC
Version 1.0.15
Update 2016-07-11 13:27:32
Size 181.4KB
OS
MAC 10.6 ~ 10.11
