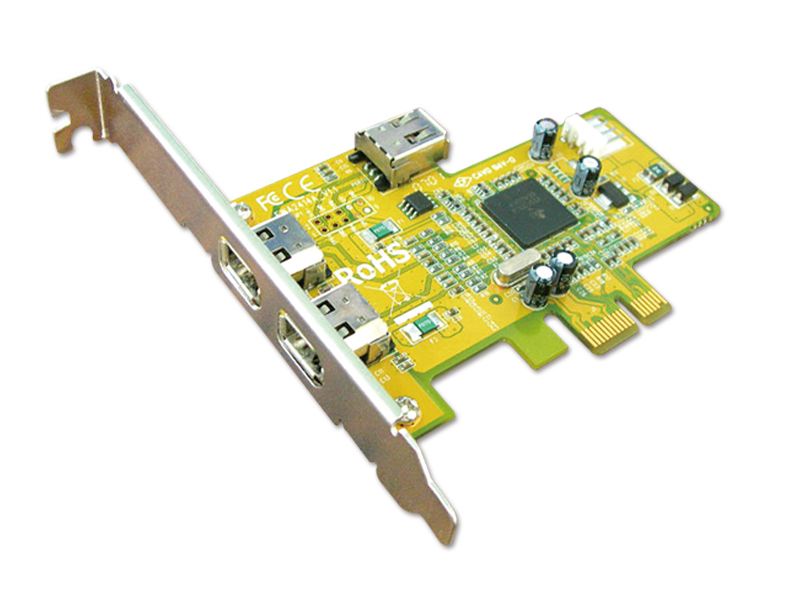

FWA2414A (phased out)

PCI Express 1394A 2+1 ports Card
  • Designed to meet PCI Express Base Specification Revision 1.1 .
  • Compliant with 1394 Open Host Controller Interface Specification 1.1 .
  • Supports hot plugging and hot swapping features.
  • Two IEEE Std 1394a-2000 fully compliant cable ports at 100,200 and 400 Mbps.
  • Cable power presence monitoring (Power Adapter using).
  • Compliant with provisions of IEEE Std 1394-1995 for a high-performance serial bus and IEEE Std 1394a-2000.
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  • Adds 3 IEEE 1394 ports to your PC for high-speed I/O connection and supports up to 63 devices.
  • Works with various types of 1394 devices including DV camcorders, hard disk drives, removable drives, CD-RWs, DVD-ROMs and other 1394 audio/video devices.

Introduction

PCI Express is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum bandwidth, reducing cost and design complexity and enabling smaller form factors.

FWA2414A is a single-chip solution for IEEE 1394A FireWire PCI Express and the interface has a potential transfer rates of 2.5 Gbps using a single-lane (or x1) PCI Express link. The 1394a OHCI controller function is fully compatible with IEEE Standard 1394a-2000 and the latest 1394 Open Host Controller Interface (OHCI) specification. This FireWire PCI-Express card allows you to connect IEEE 1394 compatible devices to your computer, such as DV cameras and camcorders. You can also make a fast network connection between two Windows XP systems with a FireWire connection, which has a data transfer speed of up to 400 Mbps.

Specifications

Type 1394A PCI Express Card
Chipset XIO2200
Interface Single-Lane (or x1) PCI Express
Port Two external and One internal (sharing) FireWire ports
Speed Data Transfer rate of 100, 200 and 400 Mbps
OS Support Windows2000/XP/2003/Vista, and Linux 2.4x, 2.6x

Certifications

CE, FCC, VCCI, BSMI

Environment

Operation temp. 0 °C ~ 57 °C
Operation humidity: 5 ~95% RH
Storage temp. -20 °C ~ 85 °C

Support

Download Manual

Manual FWA2414A User Manual
Version Ver 1.0
Update 2016-05-24 14:09:28
Size 3MB

Download Datasheet

Datasheet FWA2414A Datasheet
