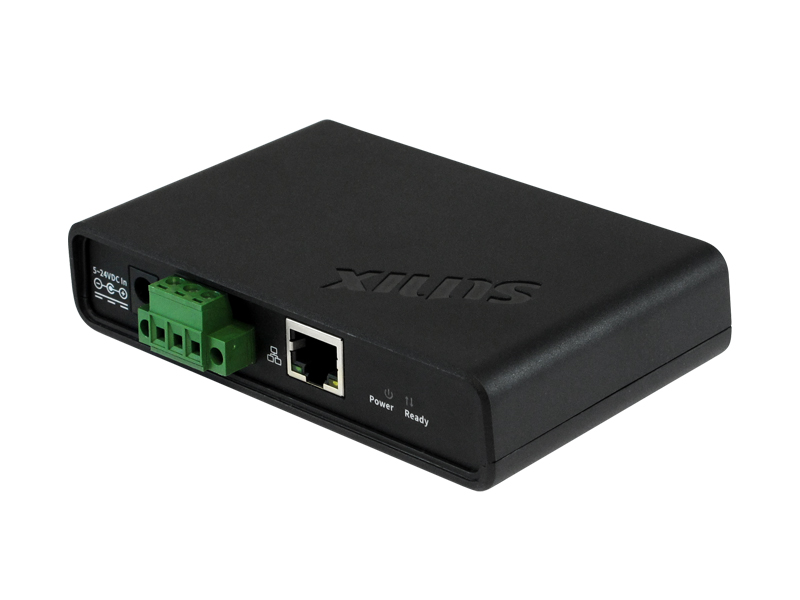

CDSS02D00 (phased out)
Serial Device Server Dual RS232 Port Serial to Ethernet
- Dual RS232 serial ports via an Ethernet network.
- Single 10/100 built-in Ethernet port.
- Real COM, TCP Server, TCP Client, UDP, and Pair Connection operation modes.
- Full Telnet, Web console, and Windows utility support.
- IEC 61000-4-2 compliant serial ports for ESD immunity.
- DC power and terminal (5 to 24 VDC) connection support.
Introduction
The CDSS02D00 can connect up two RS232 serial devices to a network. The basic function of a serial device server is to connect your existing serial devices to a network, allowing you to conveniently connect your serial devices to an Ethernet network. You can not only retain your existing hardware resources, but also ensure that future network expansions can be implemented. Furthermore, SUNIX's serial device servers can easily perform two-way data transmissions between serial and Ethernet networks, allowing you to centrally manage your serial devices and carry out the decentralized management of hosts in networks.
SUNIX's serial device server offers a variety of different operating modes for different serial ports. The product is highly suited for remote data reading, data processing, and multipoint transmissions that need to go through TCP/IP networks.
SUNIX's serial device server offers a variety of different operating modes for different serial ports. The product is highly suited for remote data reading, data processing, and multipoint transmissions that need to go through TCP/IP networks.
Specifications
Serial Communication
| Interface | RS232 | Baud rate | 50bps ~115.2Kbps |
| Controller | SUNIX DPL2000Q | Stop bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 2 ports | Flow Control |
Xon/Xoff (software control)
RTS/CTS (hardware control)
|
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal | RS232: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | ||
| Protection |
±15KV ESD IEC-61000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±2KV ESD IEC61000-4-2 Level2 Line-to-Line |
||
Software
| Network Protocols | ICMP, IPv4, TCP, UDP, Telnet, ARP/RARP, HTTP, DHCP |
| Configuration Options | Web Console、Windows Utility、Telnet Console |
| Windows COM Drivers |
Microsoft Client: Windows Vista / 7 / 8.1 / 10 (x86/x64) Microsoft Server: Windows Server 2008 / 2012R2 (X64) |
Ethernet Communication
| Number of Ports | Single Ethernet port |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | Built-in 1.5K |
Power Requirements
| Input Voltage | 5V ~ 24VDC |
| Power Consumption | 12W @ 12VDC |
| Connector |
Terminal/DC barrel power jack
|
Environment
| Operation Temperature | 0 to 60°C (32 to 113°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
Physical Characteristics
| Body case | ABS |
| Weight | 800 g |
| Dimensions | 121 x 81.93 x 27 mm / 4.7 x 3.2 x 1.0 in |
Support
Download Manual
| Manual | CDS Series Quick Installation Guide |
|
| Version | Ver. 1.0 | |
| Update | 2019-07-22 14:10:06 | |
| Size | 784.4KB |
Download Datasheet
| Datasheet | CDSS02D00 Datasheet |
|
Download Driver
| Driver | DeviceServer Driver V1.0.15.0 | |
| Version | Ver 1.0.15.0 | |
| Update | 2018-11-06 15:41:41 | |
| Size | 4.8MB | |
| OS |
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
|
Download Firmware
| Firmware | IDS_MT0_v2_1 | |
| Version | V2.1 | |
| Update | 2020-12-31 11:34:54 | |
| Size | 4MB | |
| OS | NULL |
