DPKS02HP0

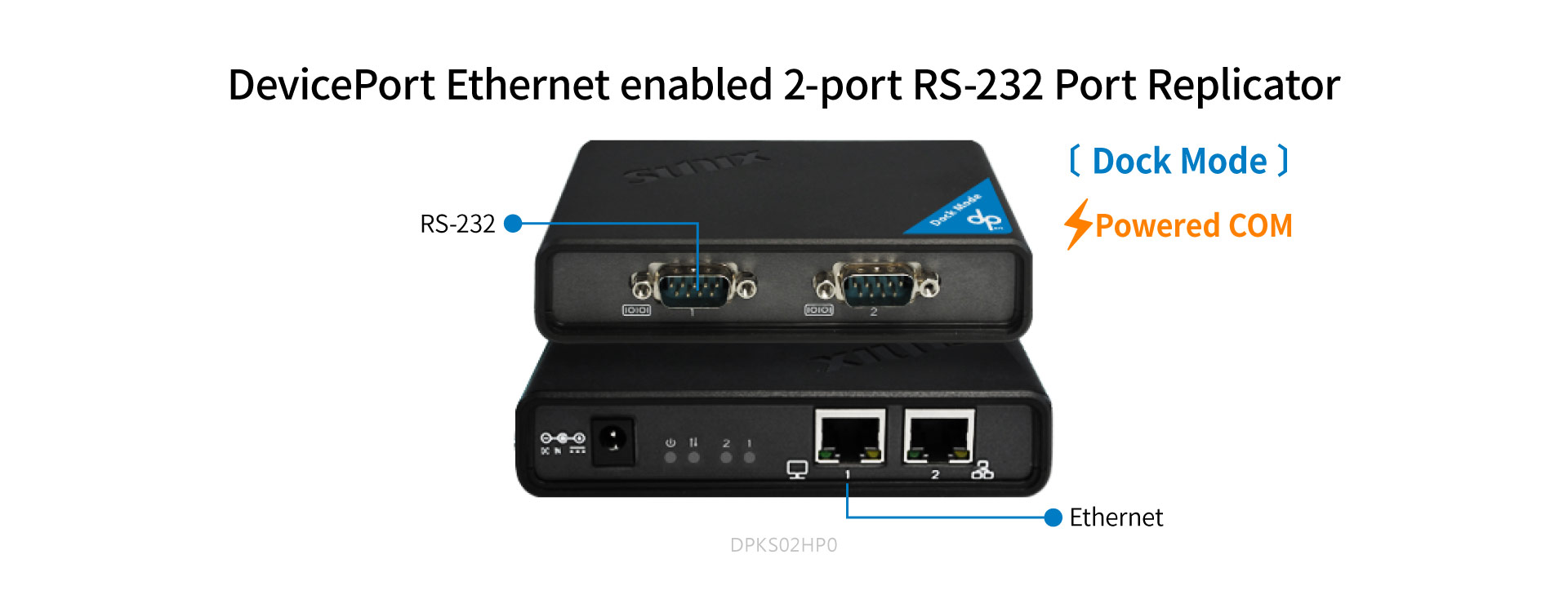

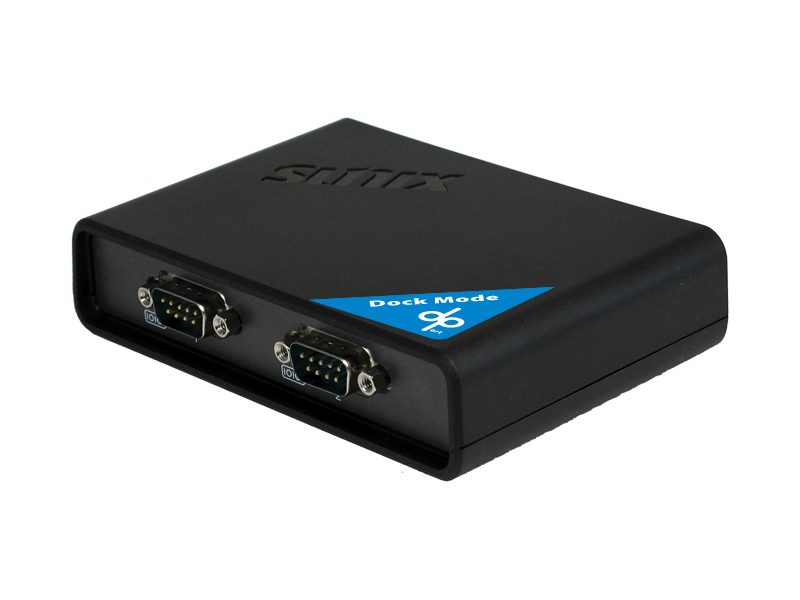

DevicePort Dock Mode Powered COM Ethernet enabled 2-port RS-232 Port Replicator
  • Expands 2 independent RS-232 serial ports over Ethernet.

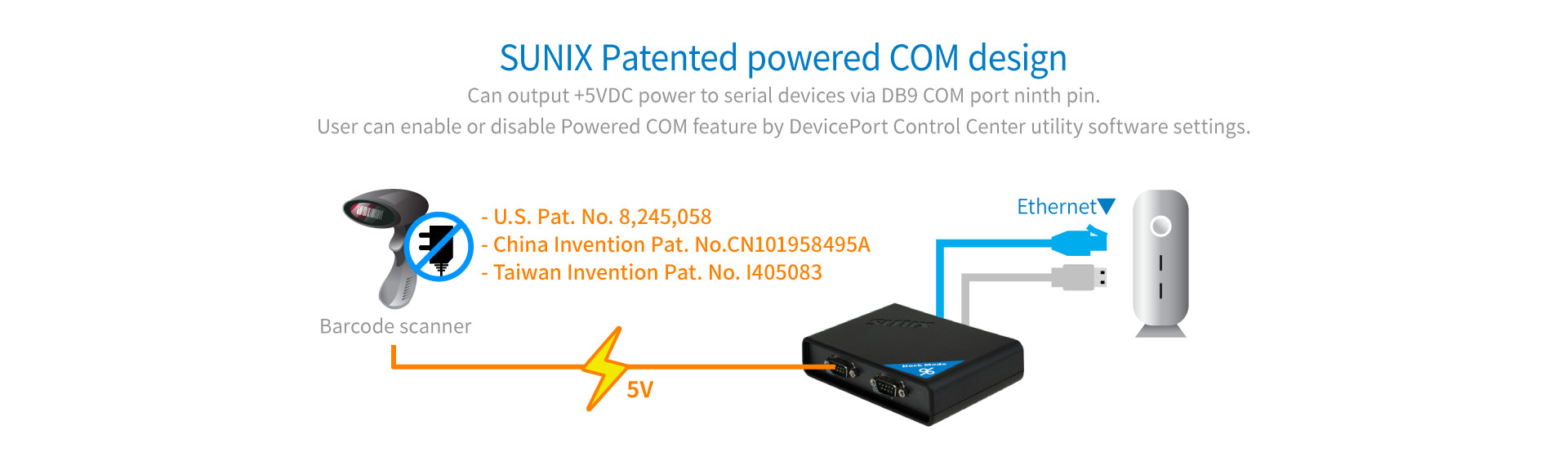

  • Provides RS-232 serial ports with +5VDC power output via COM 9th pin.
  • Communication speeds up to 115.2Kbps.
  • Real-Time data transmitting (Real COM) without complicated IP setup.
  • COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
  • Compatible with existing software and AP.
  • To make wiring simple, fast, and more space efficient.
  • Easy maintenance with Fixed COM number and Hot-Swap.
  • Built-in SUNIX DPL2000Q high performance controller.
  • DevicePort Dock mode supports secured connection between PC host and DevicePort.(*Note 1)
  • Supports Daisy Chain Topology and maximum 12 COM ports expansion.
  • Data buffer prevents any unforeseen data loss during a connection failure.
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • Low power consumption design for Green Environment.
  • Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

Introduction

SUNIX DevicePort is the ideal choice to enable your current Legacy I/O devices networking. DPKS02HP0 allows users to expand two RS-232 ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O redirection technology, DevicePort® creates physical COM ports that support real time data communication and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.

Features









Film

uplaod date:  2015-04-21 18:21:54
Description:

Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~115.2Kbps
(Optional for 921.6Kbps)
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 2-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line

Ethernet Communication

Number of Ports 2-port (*Note 1)
Upstream to Ethernet Switch
Downstream to PC Host
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Power Voltage +5VDC
Output Powered COM Capacity +5VDC / Maximum 750mA / each port
Over Current Protection 1.1A PTC fuse for each power signal
Power Consumption 2.5W @ 5VDC (board only without power output to serial device)
Connector DC-Jack

Driver Support

Windows Client XP / 7 / 8 / 8.1 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware • EUR: CE EN55022 Class B, EN55024
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• JAPAN: VCCI
Software Microsoft WHQL Windows
• Microsoft Client: XP/7/8/8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 145 g
Dimensions 121x81.93x27(mm), 4.7x3.2x1.0(inch)

Note:
 1. To prevent on-line spy recording, DevicePort Dock Mode limits specific Ethernet port connection, and it does not works on switch or router operation.

Accessories

Including Accessories

Power Jack to USB TyepA Male Cable
  • (ψ5.5 *ψ2.0 / 120cm)
  • Partner No.: 1WDC-Y1120G4100000
  • 1 pcs

Support

Download Manual

Manual DevicePort Dock Mode Powered COM RS-232

Download Datasheet

Datasheet DPKS02HP0 Datasheet

Download Guide

Guide Dock-Powered

Download Driver

Driver DevicePortDock Driver V1.0.4.0 (WHQL)
Version Ver 1.0.4.0
Update 2019-07-16 13:33:21
Size 4.5MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Driver DevicePortDock XP v.1.0.1.7 - 20150807
Version v.1.0.1.7 - 20150807
Update 2015-08-17 09:11:43
Size 4.2MB
OS
Windows XP 32bit
