• Supports PCI Express Specification Revision 2.0. (Compatible with PCI Express 1.0)
• Extends two Serial ATA Gen3 6Gb/s ports. (Compatible with SATA Gen1 and 2)
• Native Command Queue (NCQ) on SATA port.
• Supports up to two storage devices connection with RAID 0 and 1.
• Hardware RAID design reduces the system resource loading.
• Built-in 2 standard SATA ports connectivity.
• Works with various brands of large capacity SATA hard disk drives.
• Low-profile design fitting for kinds of computer chassis (Optional).
• Certified by CE, FCC, VCCI, BSMI, and RoHS.
• Support Microsoft Windows and Linux.

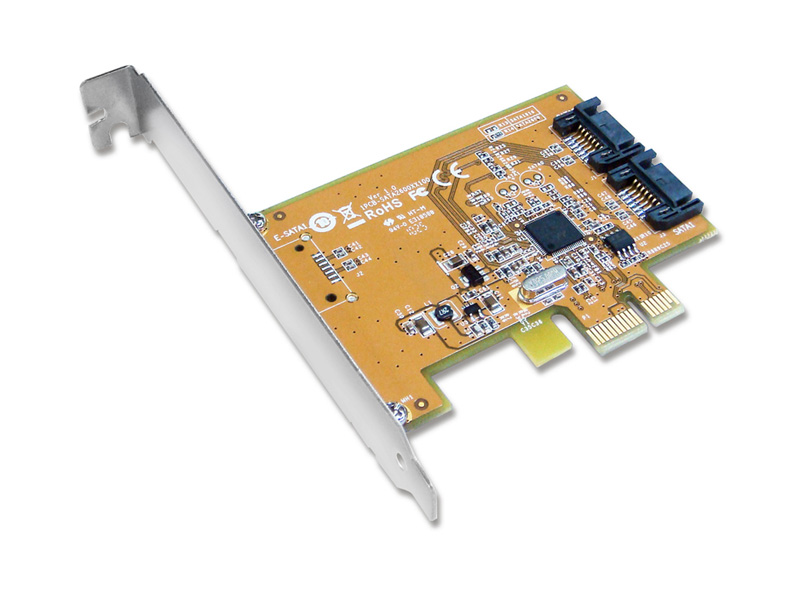

SATA2600 is a single-chip, PCI Express to two Serial-ATA (SATA) GenⅢ 6Gb/s channels RAID host controller that brings server-class features to the desktop. SATA2600 equips MARVELL high performance PCI Express chipset which supports all Serial ATA Ⅰ, Ⅱ, and Ⅲ features. SATA2600 enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It also backward compatible with previous generation of PCI-Express 1.0 technology.

• Length : 50cm
• Partner No.: 1WST-A7050A12B0003
