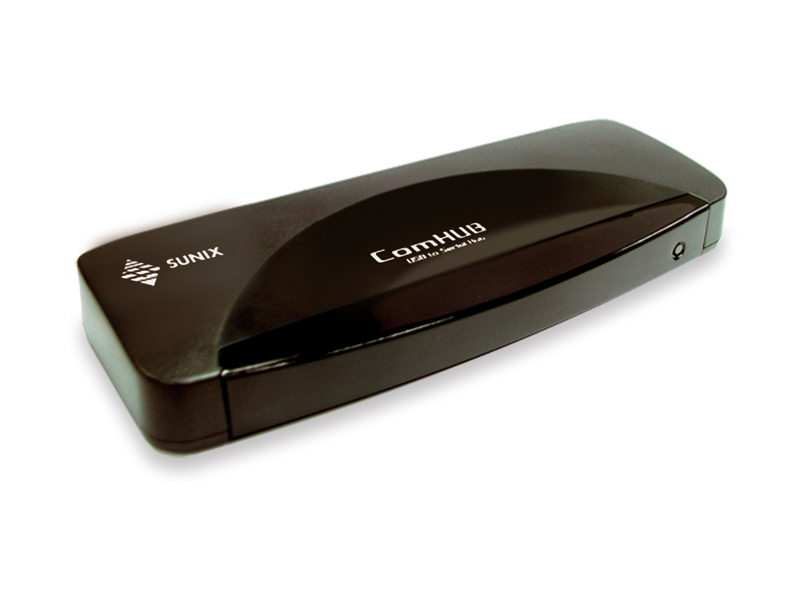

UTS4009P4 (phased out)
USB轉4埠RS - 232串列轉換器
- 透過USB擴展4個RS-232串列埠
- 相容USB 3.1/3.0/2.0/1.1 Type-A規格
- 隨插即用，可熱插拔
- 不需設定 IRQ，DMA，I/O
- RS-232的速率最高可達115.2 Kbps
- 串列訊號內嵌±15V靜電保護
- 支援Windows, Mac與Linux作業系統
- 通過CE, FCC, VCCI, BSMI和RoHS認證
介紹
SUNIX三泰的Com Hub產品系列取得全球安規認證，是您最安心的選擇。SUNIX USB轉RS-232有1/2/4埠系列，可完全符合您透過USB介面就可連接串列設備的需求。串列介面提供120Kbps資料傳輸速度，不需設定IRQ、DMA或I/O，隨插即用讓您可以輕鬆擴充串列埠設備。
規格
Description
| Product Description | 4 ports USB to RS-232 Serial Hub |
Serial Communication
| Interface | RS-232 |
| Controller | Prolific 2303Hx 16C550 UART Compatible |
| Bus Interface | Universal Serial Bus (USB) 2.0 / 1.1 |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| FIFO | 16 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 120Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (Hardware) , XON/XOFF(Software) |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) |
| Board connector | DB9 Male |
Driver Support
| Microsoft | 98/ME/2000/XP/2003/Vista/2008/7/8/8.1(32/64 bit)/CE5.0/XP Embedded |
| Linux | Linux 2.4.x/2.6.x |
| MAC | MAC 10.1, 10.4, 10.5 (Leopard) |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Window XP |
Environment
| Operating Temperature | 0 to 60 °C ( 32 to 140 °F ) |
| Operating Humidity | 5% to 95% RH |
| Storage Temperature | -20 to 85 °C ( -4 to 185 °F ) |
Power
| Input | USB Bus-power 5VDC External Power, DC Jack type |
| Consumption | < 0.7W = 5V x 130mA |
Mechanical
| Dimension | 180 x 70 x 26 mm |
| Cable Length | 1500mm (5ft) |
| Case | ABS |
| Weight | 140 ± 5 g |
支援
使用手冊下載
| 使用手冊 | 771-UTS2009P0-002 |
|
| 版本 | Ver 1.0 | |
| 更新時間 | 2014-10-30 15:56:00 | |
| 檔案大小 | 2.5MB |
| 使用手冊 | UTSX009 |
|
| 版本 | Ver.1.0 | |
| 更新時間 | 2019-07-12 13:51:11 | |
| 檔案大小 | 293.4KB |
產品規格書下載
| 產品規格書 | UTS4009P-Datasheet_V10-1 |
|
