KSF1001
智慧物聯整合方案包
- 完整的連網上雲硬體套件
- 豐富的感測器選擇，符合各種應用所需
- 毋需編程經驗，非專業用戶也可依據安裝手冊，數小時內完成建置
- 不須破壞機台，即可取得稼動數據
- 簡化人員操作，大幅提升監測及維運品質
- Azure IoT Centeral提供各種服務模組，可快速依需求拉出數位儀表板、圖形化報表
介紹
SUNIX KSF1001是全球第一個結合微軟Azure IoT Central的完整物聯網解決方案，SUNIX的智慧物聯整合方案包，已整合了您所需的感測器、遠端I/O連網模組、Gateway、網路線材，您只要按照安裝手冊，很快的就可以完成設備連網的動作，再透過微軟強大的IoT Central公有雲的SaaS服務，就可以完成一個智慧製造、智慧環控、智慧校園….的完整物聯網應用。
不需要編寫程式，也不需要設定網路IP位址，只要簡單的步驟，以及極少的費用投入，SUNIX KSF1001就可以協助你跨越複雜的物聯網門檻，讓你輕鬆體驗物聯網的世界；另外，註冊了微軟的公有雲除了可以用IoT Central來創造出個人化的儀表板，還可延伸使用微軟上百種如Power BI…的商業工具，快速提供如智慧工廠所需的狀況模組、資料歷程、數據儀表板，圖形化分析報表….。
不需要編寫程式，也不需要設定網路IP位址，只要簡單的步驟，以及極少的費用投入，SUNIX KSF1001就可以協助你跨越複雜的物聯網門檻，讓你輕鬆體驗物聯網的世界；另外，註冊了微軟的公有雲除了可以用IoT Central來創造出個人化的儀表板，還可延伸使用微軟上百種如Power BI…的商業工具，快速提供如智慧工廠所需的狀況模組、資料歷程、數據儀表板，圖形化分析報表….。

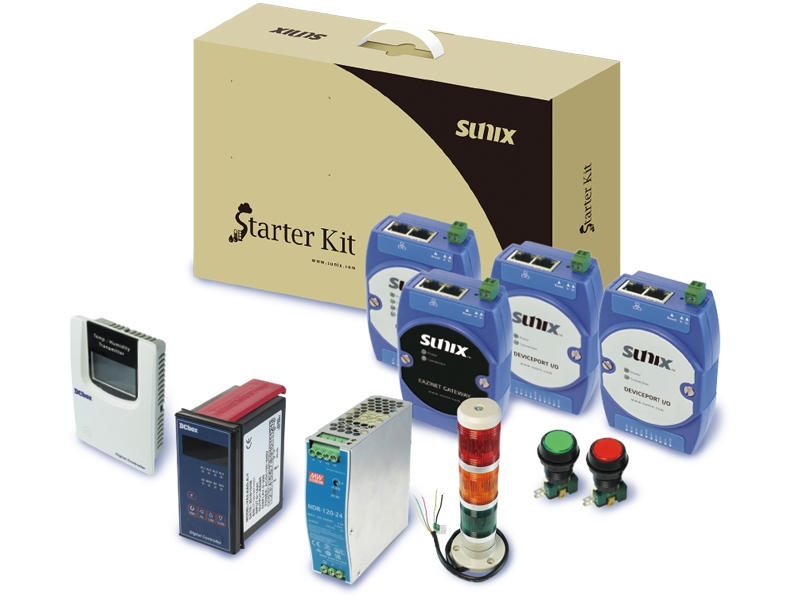

KSF1001智慧物聯整合方案包內容
1.SUNIX Azure Gateway EZG1200 X1
2.DevicePort (RS-422/485) DPAD02HTP X1
3.DevicePort I/O (數位) EZR5002 X1
4.DevicePort I/O (類比) EZR5231 X1
5.數位電表 X1
6.電源供應器AC to DC X1
7.溫溼度感應 X1
8.紅綠按鈕 X1
9.三色燈 X1
10.線材（網路線/訊號線）
特點

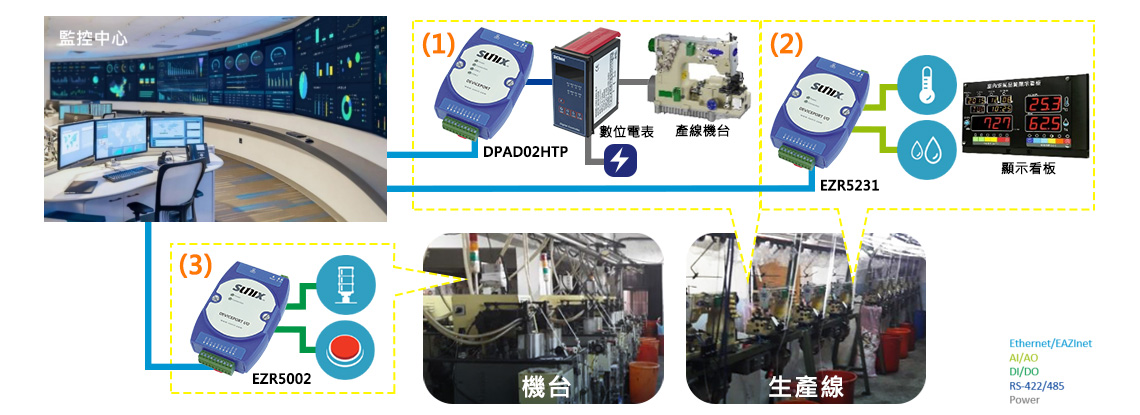

應用情境
(1)透過電表量測之數據，傳送至監控中心，經運算後產出機台生產效能報表
(2)即時監控產線溫濕度，確保生產品質(1)透過電表量測之數據，傳送至監控中心，經運算後產出機台生產效能報表
(3)透過三色燈與復歸按鈕掌握機台運轉狀態， 確保產線營運順利

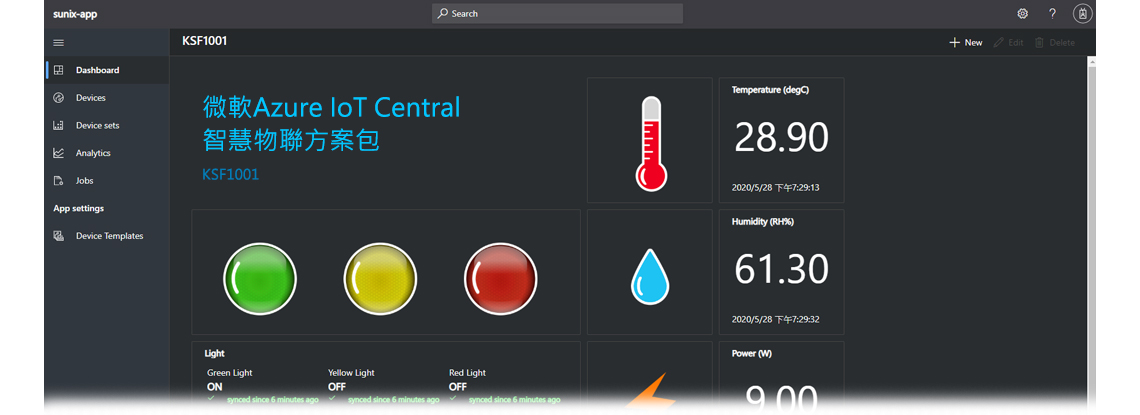

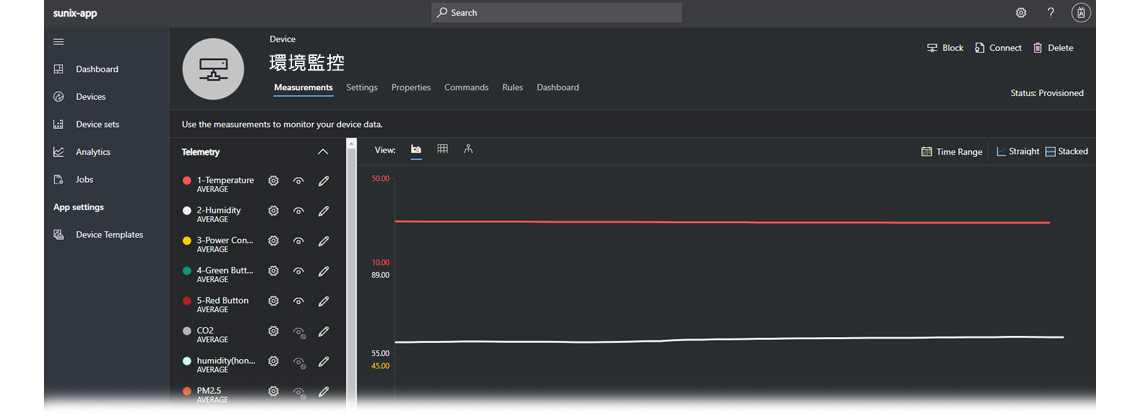

數位儀表板範例
可依實際需求，自行插入或拖曳模組，即可於2~3小時完成個人化的數位儀表板
規格
EZG1200 Azure IoT Central 閘道器
EZG1200是專為微軟Azure IoT Central而設計，並獲得全球第一個微軟Azure IoT Central認證的裝置。客戶可利用 SUNIX 通訊協定與微軟 Azure IoT Central直接連接。DPAD02HTP 串列連網網路介面擴充盒規格
Serial Interface
| Number of ports | 2 | ||
| Serial Standards | RS-422/485 | ||
| Connector | Terminal Block | ||
| Serial Signals |
RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485: Data+, Data-, GND |
||
| Stop Bits | 1, 1.5, 2 | ||
| Parity | None, Even, Odd, Space, Mark | ||
| Flow Control | XON/XOFF (Software) | ||
| Baud Rate | 50bps ~921.6Kbps | ||
EZR5002 2通道數位輸入/4通道數位輸出乙太網模組規格
Digital Input
| Channels | 2 channels | ||
| Dry Contact |
Logic Level 0: Open Logic Level 1: Close to GND |
||
| Wet Contact |
Logic Level 0: 0 to 3V Logic Level 1: 10 to 50V |
||
| Input Resistance | 10㏀ | ||
| Isolation | 1k VDC | ||
| Over-Voltage Protection | 70VDC | ||
Digital Output
| Channels | 4 channels | ||
| Output Type | NPN | ||
| Output Voltage Range | 3.5-30V | ||
| Normal Output Current | 500mA per Channel | ||
| Isolation | 1k VDC | ||
| Startup Value Setting | Yes | ||
| Communication Safety Value Setting | Yes | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
EZR5231 4通道類比輸入乙太網模組規格
Analog Input
| Channels | 4 channels | ||
| Voltage Range |
±100 mV ±500 mV, ±1 V , ±5 V, ±10 V 0~100 mV, 0~500 mV, 0~1 V , 0~5 V, 0~10 V |
||
| Current Range | ±20mA, 0~20mA | ||
| Sampling Rates | 20 Samples/Second Total | ||
| Input Impedance |
100MΩ： ±100mV, ±500mV, ±1V,0~100mV, 0~500mV, 0~1V 2.4MΩ： ±5V, ±10V,0~5V, 0~10V 120Ω：±20mA, 0~20mA |
||
| Resolution | 16-bit | ||
| Accuracy | ±0.1% FSR | ||
| Span Drift | ±25 ppm/℃ | ||
| Zero Drift | ±6 μ V/℃ | ||
| Input Voltage Protection | Built-in TVS/ESD Protection | ||
Power Requirements
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 1.6W@ 24 VDC |
| Connector | 2 PIN Terminal Block |
通信層設備通用規格
LAN
| Ethernet | 2-port 10/100 Mbps RJ45 ports |
| Protection | 1.5 KV magnetic isolation |
| Protocols | SUNIX EAZInet |
Physical Characteristics
| Dimensions | 72.1 x 108 x 33.7 mm (2.83 x 4.25 x 1.32 in) |
| Weight | 118 g |
| Mounting | DIN rail or wall |
Environmental Limits
| Operation Temperature | -25 to 70°C (-13 to 158°F) |
| Operation Humidity | 5 to 95% RH(non-condensing) |
| Storage Temperature | -30 to 75°C (-22 to 167°F) |
Standards and Certifications
| EMC | EN 55032, EN 55024 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 |
| ESD | Contact: 4 kV; Air: 8 kV |
工業型電表 (RS-485) 規格
| Accuracy | ±0.2% F.S ±1 digit(AC) | ||
| Display Screen | High brightness red LED; 20.3mm (0.8") | ||
| Sampling Tima | 69 cycles / sec | ||
| Display Range | -9999~9999 | ||
| Zero Adjustment | -9999~9999 | ||
| Over Range Indication | doFL / ioFL or -doFL/ -ioFL | ||
| Polarity Indication | Automatic with "-" indication | ||
| Parameters Setting | Push buttons | ||
| Back Up Memory | EEPROM | ||
| Communication | RS-485 Modbus RTU mode | ||
| Baud Rate | 19200 / 9600 / 4800 / 2400bps | ||
| Temperature Coefficient | 100ppm /°C (0~60°C) | ||
| Operating Temperature | 0~60°C | ||
| Operating Humidity | 20 to 90% RH(non-condensing) | ||
| Storage Temperature | -10~70°C | ||
| Storage Humidity | 20 to 90% RH(non-condensing) | ||
| Power Supply | AC/DC100~240V ; DC22~50V | ||
| Power Consumption | 6.5VA with 2 Relays ; 3VA without Relay | ||
| Surge Test | 2KVac / 1min(Input / Power) | ||
| Input Impendence |
Voltage: >2V for 20KΩ / V ; ≤2V for 200MΩ Current: ≥0.2A at 100mV ; <0.2A at 1V |
||
| Dimensions | 96(W)x48(H)x85(D)mm | ||
| Weight | 300g | ||
工業型二合一溫溼度計 (類比) 規格
| Input Signal | Capacitive Humiduty Sensor & PT100Ω | ||
| Measuring Range | Temp.:0~50°C ; Humidity: 0~100% | ||
| Operating Temperature | Temp.:0~50°C ; Humidity: 0~95% | ||
| Analog Output | 4~20mAdc ; 0~10Vdc | ||
| Signal Connection | 2 wire loop power | ||
| Temperature Coefficient | 0.5°C | ||
| Humidity Range | ±3%RH (10~90%) | ||
| Load Resistance | ≤500Ω | ||
| Ouput Adjustment | Zero and Span of 10% | ||
| Response Time | <20S (wind speed ≥1 m/s | ||
| Measuring Media | Air | ||
| Measuring Media Temp. | 0~50°C | ||
| Storage Temperature | -20~80°C | ||
| Power Supply | DC24V±20% | ||
| Wire Connection | 3P connector | ||
| Installation | Room | ||
| Protection | IP30 | ||
| Electronic Protection | Reverse protection | ||
| Dimensions | 88(W)x120(H)x90(D)mm | ||
三色塔燈 (數位) 規格
| Mounting Method | Tray Mount | ||
| Function | Continuous Light | ||
| Diameter | 120mm | ||
| Bulb | LED | ||
| Voltage | 24VAC/DC | ||
| Section | 1-5 | ||
| Lens Color | Red, Orange, Green | ||
| Dimensions | Ø120mm, 246(H)mm | ||
綠/紅色按鈕 (數位) 規格
| Dimensions | 39.8(W)x65.6(H)mm | ||
工業用DIN導軌型電源 規格
Output
| DC Voltage | 24V | ||
| Rated Current | 5A | ||
| Current Range | 0-5A | ||
| Rated Power | 120W | ||
| Ripple & Noise | 120mVp-p | ||
| Voltage ADJ. Range | 24~28V | ||
| Voltage Tolerance | ±1.0% | ||
| Line Regulation | ±0.5% | ||
| Load Regulation | ±1.0% | ||
| Setup, Rise Time | 2500ms, 60ms/115VAC at full load | ||
| Hold up Time | 10ms/115VAC at full load | ||
Input
| Voltage Range | 90~264 VAC | ||
| Frequency Range | 47~63Hz | ||
| Efficiency | 88% | ||
| AC Current | 1.3A/230VAC | ||
| Inrush Cueeent | 35A/230VAC | ||
| Leakage Current | <1mA/240VAC | ||
Protection
| Overload | 105~130% rated output power, Protection type:Constant current limiting, recovers automatically after fault condition is removed | ||
| Over Votage | 29~33V | ||
| Over Temperature | Shut down o/p voltage, re-power on to recover | ||
支援
使用手冊下載
| 使用手冊 | KSF1001 智慧物聯整合方案包使用手冊 |
|
| 版本 | Ver. 1.0 | |
| 更新時間 | 2020-10-21 10:17:36 | |
| 檔案大小 | 3.3MB |
| 使用手冊 | ECS-新增設備說明 |
|
| 版本 | Ver. 1.0 | |
| 更新時間 | 2020-03-18 16:19:27 | |
| 檔案大小 | 1.5MB |
| 使用手冊 | ECS-建立儀表板 |
|
| 版本 | Ver. 2.0 | |
| 更新時間 | 2020-10-06 14:03:17 | |
| 檔案大小 | 693.1KB |
| 使用手冊 | ECS-Gateway IP連線設定 |
|
| 版本 | Ver. 1.0 | |
| 更新時間 | 2020-05-21 15:09:56 | |
| 檔案大小 | 835.6KB |
| 使用手冊 | EZG1200 Gateway 使用說明書 |
|
| 版本 | Ver. 3.0 | |
| 更新時間 | 2021-10-28 16:27:01 | |
| 檔案大小 | 3MB |
| 使用手冊 | EZG1200 Gateway 使用說明書 |
|
| 版本 | Ver. 1.0 | |
| 更新時間 | 2021-08-27 10:10:30 | |
| 檔案大小 | 1.5MB |
產品規格書下載
| 產品規格書 | KSF1001 智慧物聯整合方案包 |
|
快速安裝指南下載
| 快速安裝指南 | KSF1001 智慧物聯整合方案包 |
|
