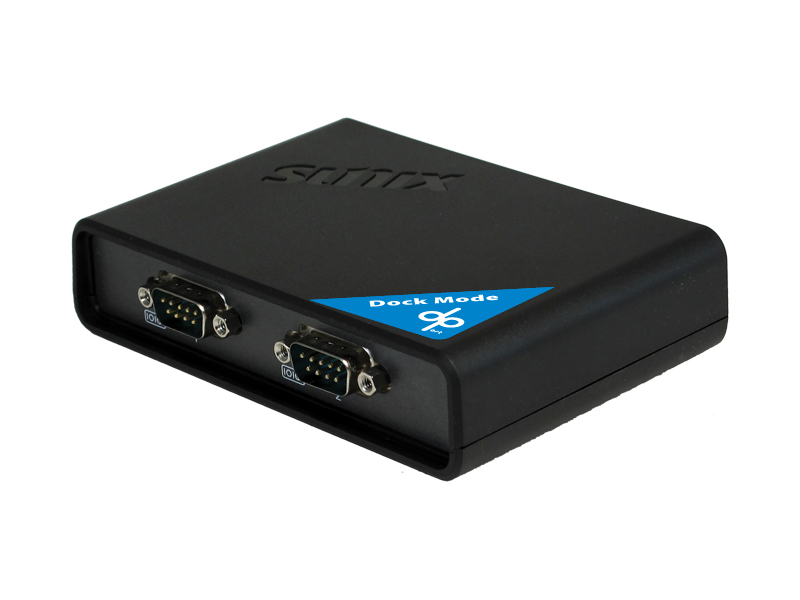

DPKS02H00 (phased out) (Replacement: DPAS02H00)

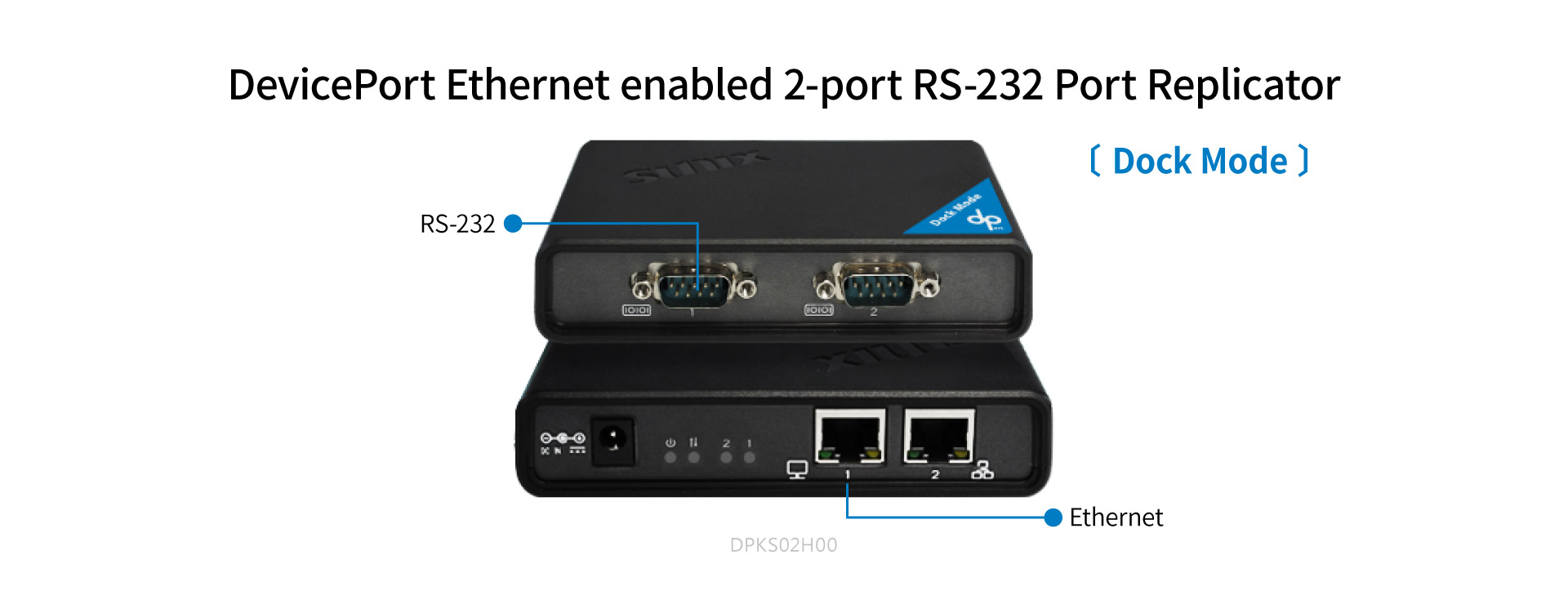

DevicePort Dock Mode Ethernet enabled 2-port RS-232 Port Replicator
- Expands 2 independent RS-232 serial ports over Ethernet.
- Communication speeds up to 115.2Kbps.
- Real-Time data transmitting (Real COM) without complicated IP setup.
- COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
- Compatible with existing software and AP.
- To make wiring simple, fast, and more space efficient.

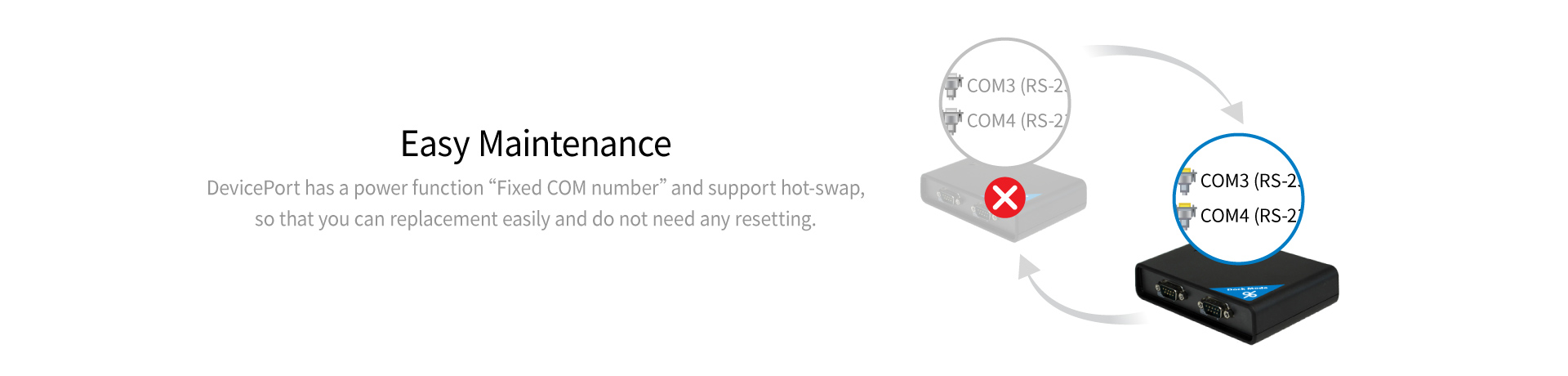

- Easy maintenance with Fixed COM number and Hot-Swap.
- Built-in SUNIX DPL2000Q high performance controller.
- DevicePort Dock mode supports secured connection between PC host and DevicePort.(*Note 1)
- Supports Daisy Chain Topology and maximum 12 COM ports expansion.

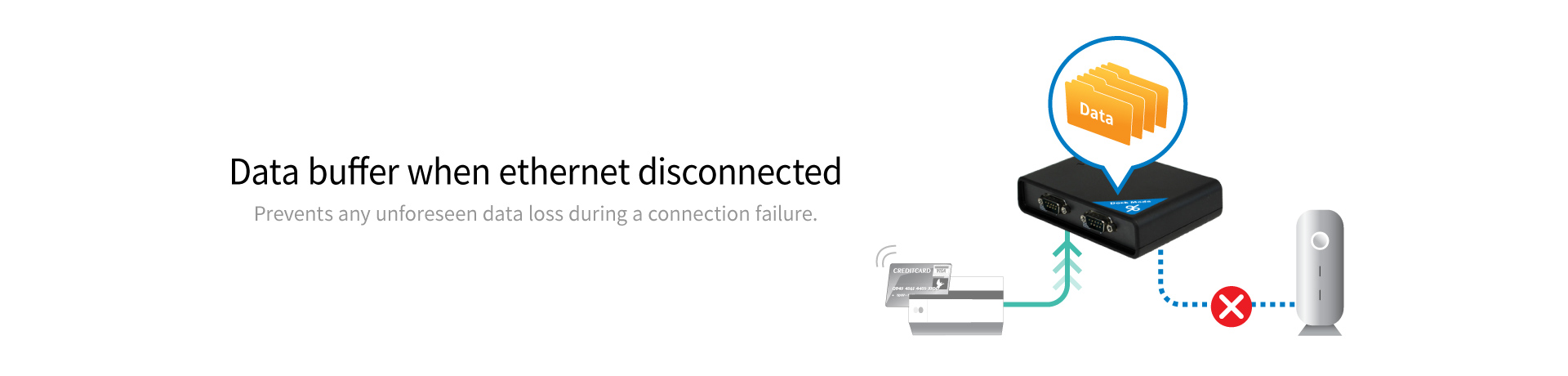

- Data buffer prevents any unforeseen data loss during a connection failure.
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- Low power consumption design for Green Environment.
- Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.
Introduction
SUNIX DevicePort® is the ideal choice to enable your current Legacy I/O devices networking. DPKS02H00 allows users to expand two RS-232 ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O redirection technology, DevicePort® creates physical COM ports that support real time data communication and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.
Features
Film
Specifications
Serial Communication
| Interface | RS-232 | Baud rate | 50bps ~115.2Kbps |
| Controller | SUNIX DPL2000Q | Stop bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 2-port | Flow Control | Xon/Xoff (software) |
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | ||
| Protection |
±15KV ESD IEC-61000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level2 Line-to-Line |
||
Ethernet Communication
| Number of Ports |
2-port (*Note 1) Upstream to Ethernet Switch Downstream to PC Host |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | 1.0K Built-in |
Power Requirements
| Input Voltage | 5 to 12VDC |
| Power Consumption | 2.5W @ 5VDC |
| Connector | DC-Jack |
Driver Support
| Windows Client | XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012R2 (X64) |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software |
Microsoft WHQL Windows • Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64) • Microsoft Server: 2003/2008/2012R2 (X64) |
Environment
| Operation Temperature | 0 to 45°C (32 to 113°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Physical Characteristics
| Housing | ABS, PC, Metal |
| Weight | 145g |
| Dimensions | 121x81.93x27(mm), 4.7x3.2x1.0(inch) |
Accessories
Including Accessories
- (ψ5.5 *ψ2.0 / 120cm)
- Partner No.: 1WDC-Y1120G4100000
- 1 pcs
Support
Download Manual
| Manual | DevicePort Dock RS-232 |
|
Download Datasheet
| Datasheet | DPKS02H00 Datasheet |
|
Download Guide
| Guide | Dock-Serial |
|
Download Driver
| Driver | DPKS02H00_FW_CODE | |
| Version | V1.006 | |
| Update | 2014-04-22 11:33:54 | |
| Size | 112.7KB | |
| OS |
FirmWare
|
