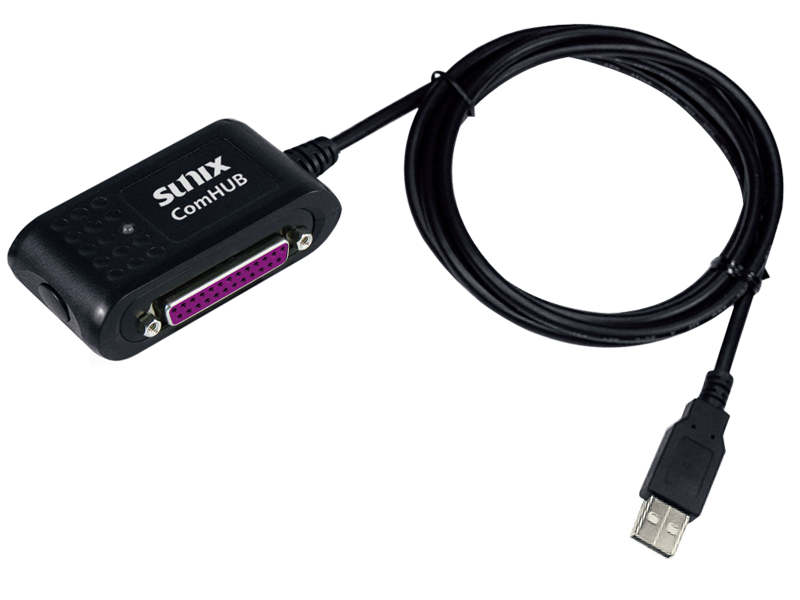

UTM1925C

USB轉1埠RS-232串列與1埠印表機轉換器

透過USB擴展1個RS-232串列與1埠印表機並列埠
符合USB 2.0與1.1標準規格
支援熱插拔
±15KV ESD靜電保護串列訊號設計
僅支援SPP模式並列埠印表機
RS-232的速率最高可達115.2Kbps
支援Windows、Linux, Mac作業系統
通過CE, FCC, VCCI, BSMI和RoHS認證

介紹規格支援

介紹

SUNIX三泰的Com Hub產品系列取得全球安規認證，是您最安心的選擇。三泰UTM1925C USB轉1埠RS-232串列與1埠印表機並列轉換器相容USB3.1/2.0和1.1規範。SUNIX ComHub系列具有1/2/7埠RS-232或印表機埠（Printer Port）的選擇，可用於條碼掃描器，POS系統，PDA，印表機和其他移動設備連接。

規格

Description

Product Description

USB to USB to 1-port RS-232 & 1-port Printer Adapter

Serial Communication

Interface	RS-232
Controller	Serial port: PL2303GC
Bus Interface	Universal Serial Bus (USB) 2.0 / 1.1
No. of Port	1-port
IRQ & IO	Assigned by System
FIFO	16 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (Hardware) , XON/XOFF(Software)
Protection	±15KV ESD protection for each signal
Board connector	DB9 Male

Printer Communication

Interface	Printer
Controller	Printer port: PL2305
No. og port	1-port
Mode	SPP Mode (Support Printer only)
Cable connectors	DB25 Female
ESD Protection for Parallel I/O	±2KV ESD Protection

Driver Support

Microsoft Windows	Windows 7/ 8.x/ 10 (X86/X64) / 11
Microsoft Server	2008/ 2008R2/ 2012/ 2012R2/ 2016/ 2019
Linux	Linux 2.4.3.1 and above
MAC	MAC OS 10.9/ 11

Regulatory Approvals

EMC	CE, FCC, VCCI, BSMI
Green	RoHS, WEEE, REACH

Environment

Operating Temperature	0 to 60 °C ( 32 to 140 °F )
Operating Humidity	0% to 85% RH
Storage Temperature	-30 to 85 °C ( -22 to 185 °F )

Power

Input	USB Bus-power
Consumption	<1W = 5V x 200mA

Mechanical

Dimension	75 (W) x 40 (D) x 22 (H) mm
Cable Length	1500mm (5ft)
Case	ABS
Weight	106 ± 5 g

支援

使用手冊下載

使用手冊	UTM1925C User Manual
版本	v.01
更新時間	2021-02-23 14:39:23
檔案大小	404.9KB

產品規格書下載

產品規格書

UTM1925C Datasheet

驅動程式下載

驅動程式	PL23XX_Prolific_DriverInstaller_v408
版本	V4.0.8
更新時間	2022-11-28 14:47:39
檔案大小	12.5MB
作業系統	Windows 11 64bit Windows 10 32/64 bit Windows 8.1 32/64 bit Windows 8.0 32/64 bit Windows 7 SP1 32/64 bit Windows Vista SP2 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows Server 2012 R2 64-bit Windows Server 2008 R2 SP1 64bit Windows Server 2008 64-bit

驅動程式	PL2303HXD_G_Mac Driver_v2_1_0_20210311
版本	V2.1.0
更新時間	2021-07-26 09:59:12
檔案大小	513.2KB
作業系統	OS X Mavericks 10.9 OS X Yosemite 10.10 OS X El Capitan 10.11 OS X Sierra 10.12 OS X High Sierra 10.13 OS X Mojave 10.14 OS X Catalina 10.15 OS X Big Sur 11

驅動程式	PL2303G_Linux_Driver_v1.0.6
版本	V1.0.6
更新時間	2023-05-09 11:55:12
檔案大小	657.3KB
作業系統	Linux 2.6.15~5.4.89
