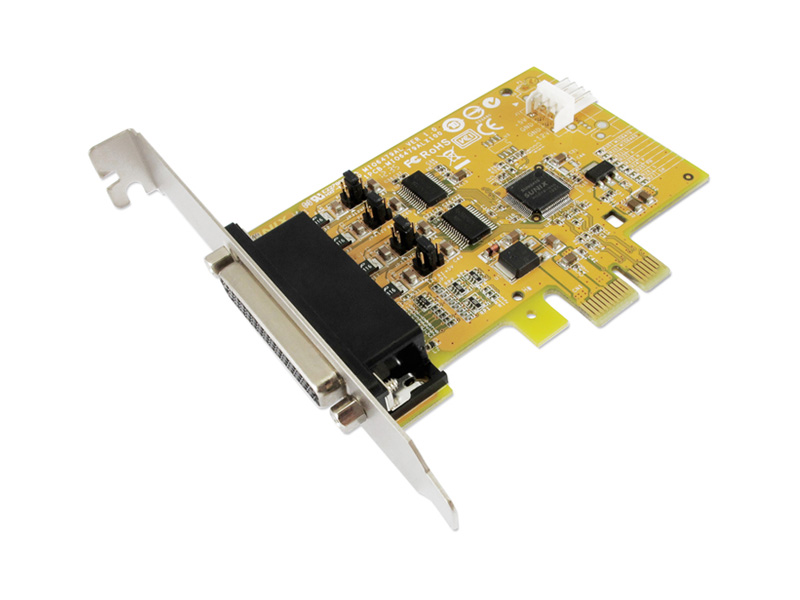

MIO6479PH

2埠供電型高速RS-232串列&1埠並列PCI Express卡
  • 擴充2埠RS-232串列/ 1埠LPT並列埠
  • DB9M串列埠第1針或第9針提供+5V/12VDC電源輸出
  • 內嵌小4P電源插座,連接系統直流電源
  • 相容PCI Express 2.0規格
  • 支援x1, x2, x4, x8, x16 (lane) PCI Express插槽
  • 搭載高性能SUN2410 16C950 UART/ IEEE1284 單晶片
  • 自動流量控制技術可有效避免資料丟失
  • 所有串列信號內嵌±15KV靜電保護,符合IEC1000-4-2標準
  • 支援IEEE 1284-1994標準並列埠
  • 獨有技術可自動偵測印表機ECP / EPP/ SPP / BPP模式
  • 隨插即用,I/O 位址和IRQ由系統BIOS分配
  • 通過微軟WHQL嚴格認證,確保硬體的最佳相容性
  • 國際電磁相容性安規CE, FCC, VCCI, BSMI認證
  • 符合綠色環保RoHS、WEEE規範
  • 支援Microsoft Windows, Linux 和 DOS 作業系統

介紹

三泰擁有串列帶電發明專利,起因於觀察到如果經由串列埠直接提供+5V/12V電,那串列設備(如條碼掃描器…)就不需再另外接電,將帶給使用者極大的便利。 三泰全系列I/O卡搭載SUNIX自有晶片,通過微軟WHQL嚴格驗證,並取得全球安規認證,確保高效、穩定、系統相容性最高。三泰高品質的I/O卡系列深受全球金融、公共運輸、大型公共建設、一線PC大廠...所信賴及採用,除了自主研發的高集成、低耗電晶片,專業的軟硬體研發團隊,完整支援最新的Windows / Linux 作業系統,並累積豐富的經驗及技術,可以滿足不同客戶的特殊需求,優良的品質被讚譽為『黃金卡』。

特點

規格

General

Interface RS-232 and IEEE1284
Controller SUNIX SUN2410 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD/5V/12V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5VDC
Baud rate 50bps ~ 921.6Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB44 Female
Cable Connector DB 9 Male

Parallel Communication

Interface IEEE1284
No. of Port 1-port
Mode SPP / ECP / EPP / BPP
FIFO 16byte Hardware
Speed Maximum 1.8MBps
PCB Connector DB44 Female
Cable Connector DB25 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x / 6.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
上列 "*" 標註為專案支援之作業系統,如有進一步需求歡迎洽詢我們

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
• Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 92 x 69 mm
Bracket MIO6479PH: Standard 121 mm
MIO6479PHL: Low Profile 80 mm
Bracket Space 1

Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

配件

選購配件

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

支援

使用手冊下載

使用手冊 771-9PCIEMIO2-S01
版本 Ver 3.0
更新時間 2017-07-11 14:09:39
檔案大小 6.1MB
使用手冊 Parallel LPT Port Configuration
版本 v1.0
更新時間 2016-01-15 17:34:30
檔案大小 1.2MB

產品規格書下載

產品規格書 MIO6479PH(DB44)-Datasheet-V10

驅動程式下載

驅動程式 SUN1999Driver V10.2.8.0 (WHQL)
版本 10.2.8.0
更新時間 2024-10-18 15:46:26
檔案大小 10.3MB
作業系統
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 11 IoT Enterprise 24H2
Windows 11 IoT Enterprise LTSC 2024
Windows 11 Enterprise LTSC 2024
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
驅動程式 SUN1999Driver V9.2.2.0(WHQL)
版本 9.2.2.0
更新時間 2021-01-05 09:27:46
檔案大小 9.4MB
作業系統
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
驅動程式 SUN1999Driver V8.2.0.0 (WHQL)
版本 8.2.0.0
更新時間 2023-01-12 13:34:21
檔案大小 4.4MB
作業系統
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
驅動程式 SUN1999Driver V8.1.5.0 (WHQL)
版本 8.1.5.0
更新時間 2023-01-11 17:08:11
檔案大小 4.5MB
作業系統
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
驅動程式 WinCE 6.0 Driver V1.2.0.0
版本 1.2.0.0
更新時間 2019-07-08 17:59:12
檔案大小 301.2KB
作業系統
Windows CE 6.0
驅動程式 WinCE 5.0 Driver V1.1.0.0
版本 1.1.0.0
更新時間 2019-07-08 18:00:02
檔案大小 280KB
作業系統
Windows CE 5.0
驅動程式 WinCE 4.2 Driver V1.1.0.0
版本 1.1.0.0
更新時間 2019-07-08 18:00:47
檔案大小 235.6KB
作業系統
Windows CE 4.2
驅動程式 SUN1999/2000 Linux Inbox Driver User Guideline
版本 1.0
更新時間 2022-05-31 17:59:20
檔案大小 1.2MB
作業系統
Linux Kernel 5.4 above
驅動程式 snx_V2.1.0.0
版本 V2.1.0.0
更新時間 2024-10-29 15:49:56
檔案大小 704.9KB
作業系統
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
驅動程式 SUNDOS1.00.00.006
版本 1.00.00.006
更新時間 2014-08-19 10:36:25
檔案大小 21KB
作業系統
DOS
