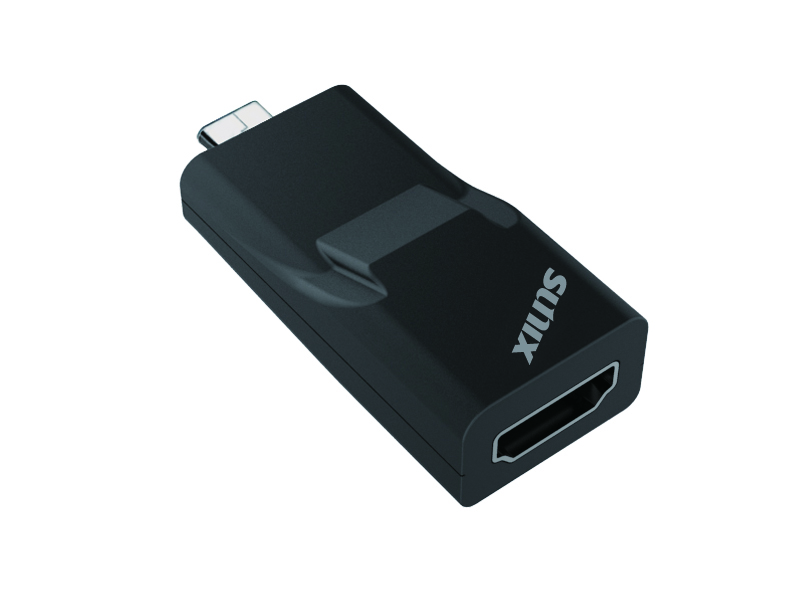

C2HC3MD (phased out)

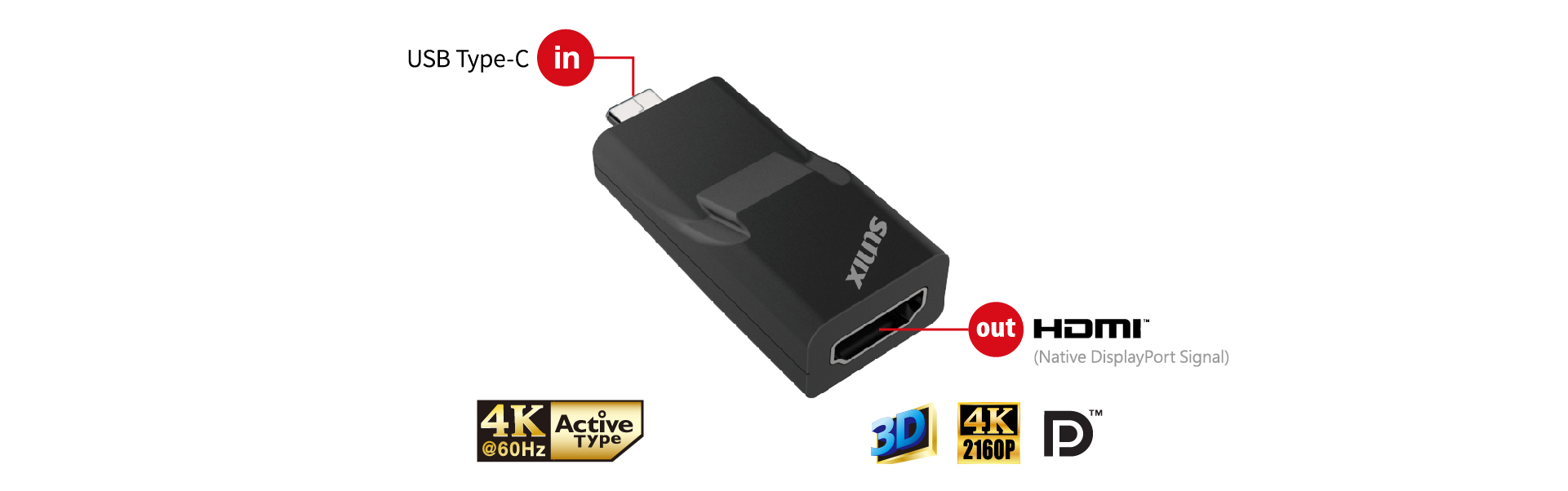

USB Type-C to HDMI 2.0 4K60Hz UHD Active Dongle
- Adapts USB Type-C equipped laptops to work with HDMI-enabled displays.
- Integrated active chip to provide a HDMI 2.0 conversion from USB-C Type port.
- Compliant with VESA DisplayPort Alternate Mode for USB Type-C standard.
- Video resolution up to UHD 2160p at 60Hz and FHD 1080p at 120Hz.
- High-definition digital audio output over HDMI channel.

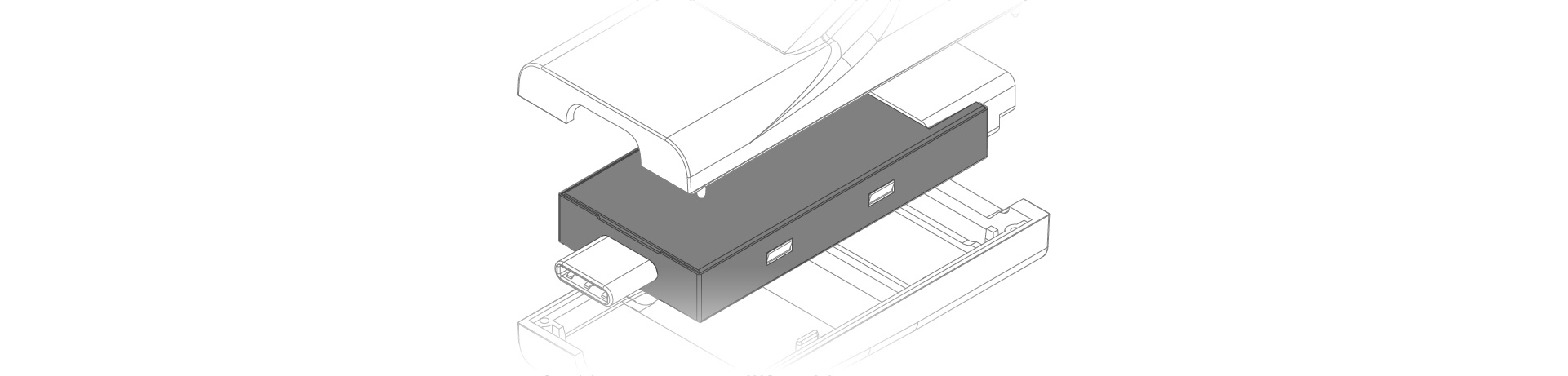

- Shielding Case’s anti-jamming capability gives high quality signal.
- Plug-&-play, driver free, and no external power needed.
- Support Apple MAC, Google Chromebook and Windows OS.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Introduction
SUNIX C2HC3MD, USB Type-C video Dongle lets you connecting your USB 3.1 Type-C source device featuring DisplayPort™ Alternate Mode to an HDMI 2.0 enabled UHD monitor, television, projector or other compatible display in up to UHD 2160p (3840x2160) and 1080p (1920x1080P) at 60Hz.
The USB 3.1 Type-C to HDMI2.0 UHD Dongle supports all USB 3.1 Type-C devices with DisplayPort™ Alternate mode and operating systems, including Apple OS X, Windows and Google Chrome OS. With ultra-compact, highly-portable, and no external power needed design, this video adapter is the best travel accessories of notebooks and Ultrabooks.
The USB 3.1 Type-C to HDMI2.0 UHD Dongle supports all USB 3.1 Type-C devices with DisplayPort™ Alternate mode and operating systems, including Apple OS X, Windows and Google Chrome OS. With ultra-compact, highly-portable, and no external power needed design, this video adapter is the best travel accessories of notebooks and Ultrabooks.
Features
- Compliant with VESA DisplayPort Alternate Mode for USB-C Standard.
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for HDMI 2.0-enabled TV, monitor and projector
- The new HDMI 2.0 feature

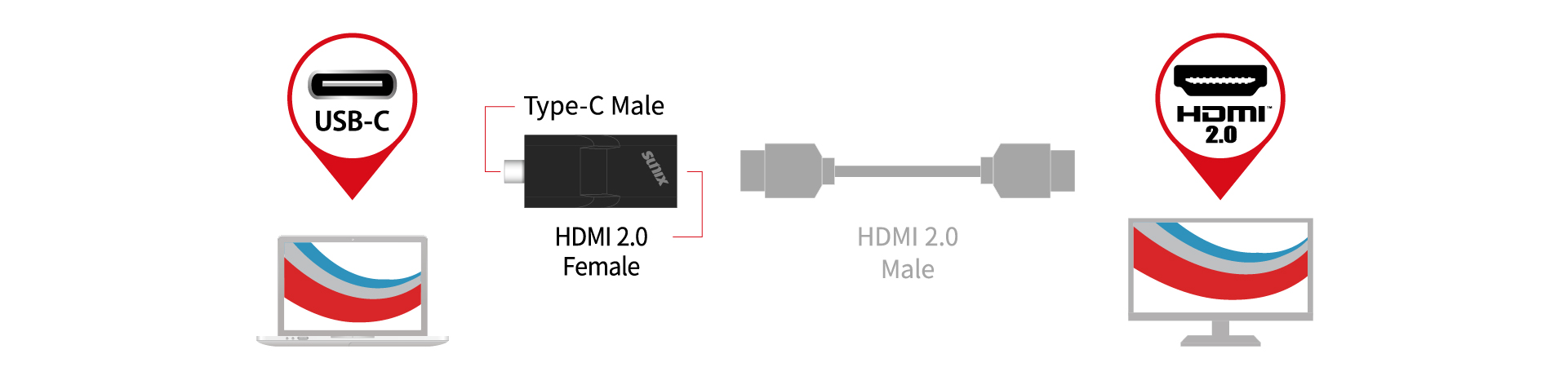

- Connect a HDMI 2.0 monitor to an USB-C equipped laptop / mobile device
- USB Type-C Reversible Design
- Shielding Case’s anti-jamming capability gives high quality signal
Specifications
| Model | C2HC3MD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USB Type-C to HDMI 2.0 4K60Hz UHD Active Dongle | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Interface |
USB TypeC
USB TypeC Alternate Mode
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Interface |
HDMI Ver2.0
Standard HDMI Female
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power |
USB Bus Power
+5VDC @ 250mA
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display Resolution |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | 8-Channel Digital Audio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Driver Support |
Driver free under Apple MAC, Google Chrome, and Microsoft Windows |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
Operation temp. 0 °C ～ 60 °C (32140°F) Operation humidity: < 85% noncondensing Storage temp. 10 °C ～ 85 °C (14~176°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory Approvals |
CE, FCC, VCCI, BSMI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Green Environment | RoHS, CRoHS, WEEE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing | ABS(Plastic) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
52.6(L) x 22(W) x 13.2(H) mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 15(0.5oz) |
Note: Before purchasing this adapter, please make sure your computer supports USB-C Alternate Mode or Thunderbolt 3.
Support
Download Datasheet
| Datasheet | C2HC3MD Datasheet |
|
Download Driver
| Driver | Driver Free |
| OS |
All System
|
