DEL2S00PL

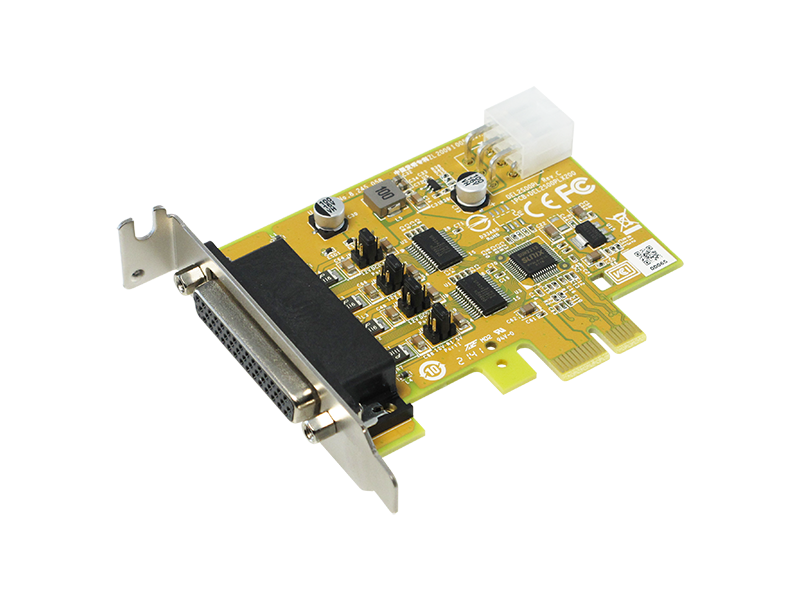

2-port RS-232 PCI Express Powered Serial Board
  • Expands two RS-232 serial ports with communication speeds up to 115.2Kbps.
  • High reliable SUN2212 16C950 compatible native PCI Express UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ESD protection for all serial signals meets IEC1000-4-2 and DELL M6403_A08 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation system.

Introduction

SUNIX DEL2S00PL, PCI Express serial communication board, allows users to add or expand two RS-232 COM ports on PC-based system to use serial devices further. This board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX DEL2S00PL meets the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any slim size PC-based system with low profile bracket structure. This serial board has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX native PCI Express UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

Hardware

Interface RS-232
Controller SUNIX SUN2212 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System



Serial Communication

Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge DELL M6403_A09 Direct Pin Injection
PCB Connector DB44 Female

Power

Source +12VDC / PCIe GFx power connector 2x3 Type
Output Capacity +5VDC / Maximum 1A / each port   or
+12VDC / Maximum 1A / each port
Over Current Protection 1.1A PTC fuse for each power signal
Power Consumption 1.0W @ 3.3V (board only without power output to device)



Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.



Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)

Standards and Certifications

EMC CE, FCC, VCCI, BSMI
Green RoHS, CRoHS, WEEE

Physical Characteristics

PCB Dimension 84 x 69  mm
Bracket Low Profile 80 mm
Bracket Space 1

Accessories

Optional Accessories

PCIe Add-in card Holder
  • Part No.: 5013-PCIFX1C00-QCN
FILM:PCIe Add-in card Holder Introduction
PCIe Add-in card Holder

Support

Download Datasheet

Datasheet DEL2S00PL Rev C Datasheet EN

Download Driver

Driver SUN1999Driver V10.2.5.0(WHQL)
Version 10.2.5.0
Update 2024-01-11 13:26:56
Size 10.2MB
OS
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V10.2.3.0(WHQL)
Version 10.2.3.0
Update 2023-06-30 11:26:32
Size 10.2MB
OS
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.0.9.0
Version V2.0.9.0
Update 2024-02-23 11:51:30
Size 703.5KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
