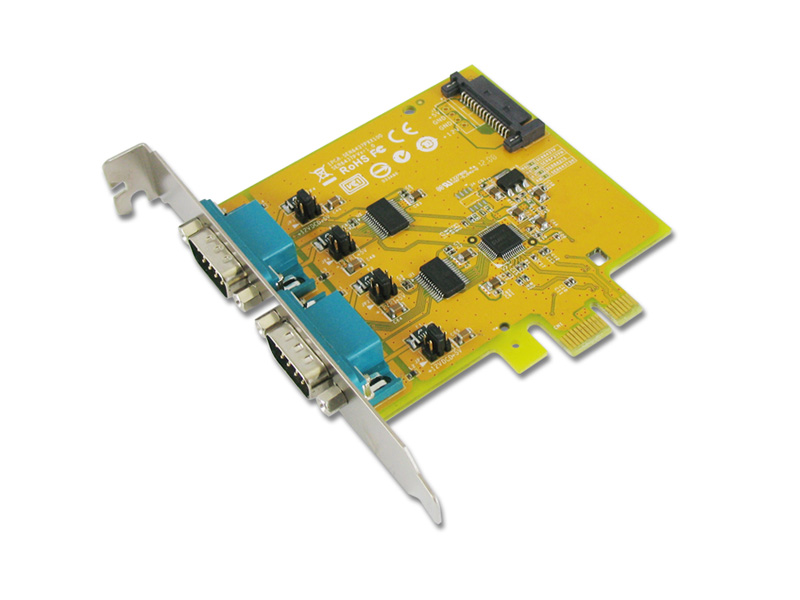

SER6437S
2-port RS-232 PCI Express Serial Board with Power Output (SATA Power Socket)
- Expands two RS-232 serial ports with communication speeds up to 115.2Kbps.
- High reliable SUN2212 16C950 compatible native PCI Express UART controller on-board.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
- Build-in Serial-ATA power socket to source efficient DC power from system.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation system.
Introduction
SUNIX SER6437S, PCI Express serial communication board, supports +5 or +12VDC of power via COM1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply
SUNIX SER6437S meets the PCI Express Base Specification Revision 2.0, allows users to add or expand two RS-232 COM ports on PC-based system to use serial devices further. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of today’s motherboard does not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. This serial board has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specifications. It is designed with SUNIX native PCI Express UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
Optional 5V / 12V / Signal Output over COM
For SUNIX PoweredIO Serial card, user can select +5VDC and +12VDC power output over both COM 1st or 9th pins. In addition, this board also keeps the original RS-232 signal for traditional application using. In order to make sure the power stable and convenient, the DC power sources from the system power supply over standard Serial-ATA power socket. SUNIX PoweredIO Serial card is designed for users who want to connect serial peripherals without using extra power adaptor. |
Reliable Circuit Protection
Each RS-232 port is protected with a 1.1 Amp PTC (Positive Temperature Coefficient) resettable fuse. The PTC may temporarily allow more that 1.1 Amp to be drained. Typically, a PTC will shut off after approximately 15 seconds drawing more than 1.9 Amp. The PTC will turn off the power for each individual port if an unusual overload is sustained. Besides in order to satisfy kinds of serial device power requirements, each RS-232 port can support 1100mA output in the PCB circuit design. |
|
Specifications
General
Interface | RS-232 |
Controller | SUNIX SUN2212 (16C950 UART Compatible) |
BUS | PCI Express Spec 2.0, Single-Lane (x1) |
IRQ & IO | Assigned by System |
Serial Communication
Interface | RS-232 |
No. of Port | 2-port |
FIFO | 128byte Hardware |
Signal | DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5VDC |
Baud rate | 50bps ~ 115.2Kbps |
Stop bit | 1, 1.5, 2 |
Parity | even, odd, none, mark, space |
Flow Control | None, Xon/Xoff, RTS/CTS |
Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
PCB Connector | DB9 Male |
Driver Support
Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
Linux | Linux 2.x / 3.x / 4.x / 5.x |
DOS | DOS |
*UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
*IBM OS/2 | WARP 3/WARP 4 |
"*" marked as a project supported operating system. Please contact us if you have any further need. |
Regulatory Approvals
Hardware | CE, FCC, VCCI, BSMI |
Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment
Operation Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% RH |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
PCB Dimension | 86 x 88 mm |
Bracket | Standard 121 mm |
Bracket Space | 1 |
Accessories
Optional Accessories
- Part No.: 5013-PCIFX1C00-QCN
Support
Download Manual
Manual | Powered COM PCI Express Card User Manual-771-PCIEPOW02-S01 | |
Version | Ver 3.0 | |
Update | 2018-09-13 17:20:19 | |
Size | 1.3MB |
Download Datasheet
Datasheet | SER6437S-Datasheet-V10 |
Download Guide
Guide | PCI-E Powered RS-232 Quick Installation Guide |
Download Driver
Driver | SUN1999Driver V10.2.8.0 (WHQL) | |
Version | 10.2.8.0 | |
Update | 2024-10-18 15:46:26 | |
Size | 10.3MB | |
OS |
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
|
Driver | SUN1999Driver V9.2.2.0(WHQL) | |
Version | 9.2.2.0 | |
Update | 2021-01-05 09:27:46 | |
Size | 9.4MB | |
OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
Version | 8.2.0.0 | |
Update | 2023-01-12 13:34:21 | |
Size | 4.4MB | |
OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
Version | 8.1.5.0 | |
Update | 2023-01-11 17:08:11 | |
Size | 4.5MB | |
OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
Driver | WinCE 6.0 Driver V1.2.0.0 | |
Version | 1.2.0.0 | |
Update | 2019-07-08 17:59:12 | |
Size | 301.2KB | |
OS |
Windows CE 6.0
|
Driver | WinCE 5.0 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:02 | |
Size | 280KB | |
OS |
Windows CE 5.0
|
Driver | WinCE 4.2 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:47 | |
Size | 235.6KB | |
OS |
Windows CE 4.2
|
Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
Version | 1.0 | |
Update | 2022-05-31 17:59:20 | |
Size | 1.2MB | |
OS |
Linux Kernel 5.4 above
|
Driver | snx_V2.1.0.0 | |
Version | V2.1.0.0 | |
Update | 2024-10-29 15:49:56 | |
Size | 704.9KB | |
OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
Driver | SUNDOS1.00.00.006 | |
Version | 1.00.00.006 | |
Update | 2014-08-19 10:36:25 | |
Size | 21KB | |
OS |
DOS
|
