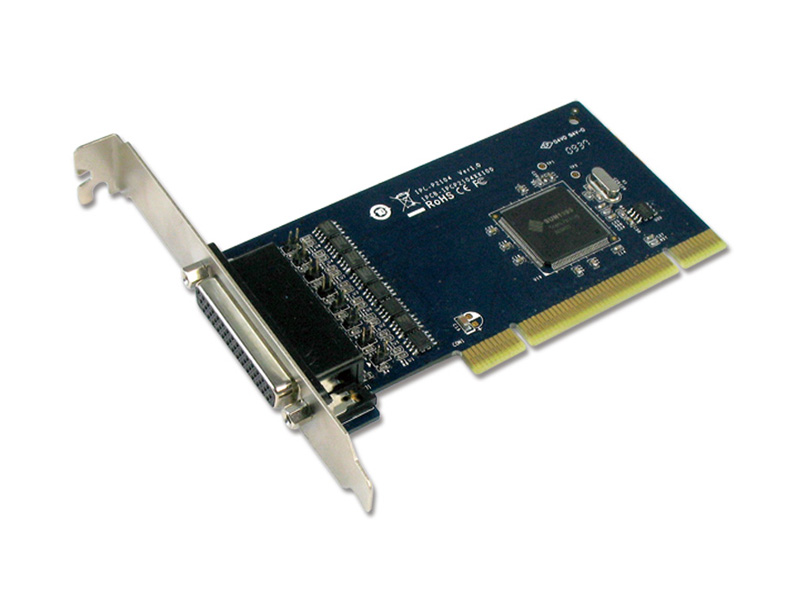

IPC-P2104

Industrial 4-port RS-422/485 Universal PCI Board
  • Expands 4 RS-422/485 serial ports with communication speeds up to 921.6Kbps.
  • High reliability SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver 3.0, 2.3, 2.2 & 2.1 specifications.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • RS-422/485 auto detect and switching technology – jumper and software free.
  • AHDC/CSTM technology for collision free communication.
  • Ultra low power consumption design for Green Environment.
  • Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX IPC-P2104, industrial standard universal PCI serial communication card, allows users to expand four RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDCTM technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.

Features

Specifications

Description

Product Description 8-port RS-422 / 485 Universal PCI Board

Serial Communication

Interface RS-422/485
Controller SUNIX SUN1999 (16C950 UART Compatible)
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 8-port
IRQ & IO Assigned by System
FIFO 128 byte (Hardware)
Signal RS-422: TxD+, TxD-, RxD+, RxD-, GND
4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
2-wire RS-485: Data+, Data-, GND
Baud rate 50 bps to 921.6 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control Xon/Xoff (software)
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB connector DB44 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.x / 6.x
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
• Windows Server: 2003 / 2008 / 2012 / 2016 /2019 / 2022 (X64)

Environment

Operation Temperature 0 to 70°C (32 to 158°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 63 mm
Bracket
Standard 121 mm
Accessory: Low Profile 80 mm
Bracket Space 1


Accessories

Including Accessories

DB44 to 4-port DB9 Male Connection Cable
  • 40 cm
  • Part No.: 1WDB-44M04009D4003
  • 1 pcs.

Optional Accessories

DB9 Female to 5-pin Terminal Block Adapter
  • Part No.: DB9FTOTB50410

Support

Download Manual

Manual PCI RS-422485 Manual-771-PCI422002-S01
Version Ver 3.0
Update 2017-07-24 14:24:09
Size 1.5MB

Download Datasheet

Datasheet IPC-P2104-Datasheet-Ver20

Download Guide

Guide PCI RS-422485 Quick Installation Guide

Download Driver

Driver SUN1999Driver V10.2.8.0 (WHQL)
Version 10.2.8.0
Update 2024-10-18 15:46:26
Size 10.3MB
OS
Windows 11 24H2 64 bit
Windows 11 23H2 64 bit
Windows 11 22H2 64 bit
Windows 11 21H2 64 bit
Windows 10 22H2 (22H2) 32/64 bit
Windows 10 21H2 (21H2) 32/64 bit
Windows 10 21H1 (21H1) 32/64 bit
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 IoT Enterprise 22H2
Windows 10 IoT Enterprise 21H2
Windows 10 IoT Enterprise LTSC 2021
Windows 10 Enterprise LTSC 2021 32/64bit
Windows Server 2022 64bit
Driver SUN1999Driver V9.2.2.0(WHQL)
Version 9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2023-01-12 13:34:21
Size 4.4MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2023-01-11 17:08:11
Size 4.5MB
OS
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999/2000 Linux Inbox Driver User Guideline
Version 1.0
Update 2022-05-31 17:59:20
Size 1.2MB
OS
Linux Kernel 5.4 above
Driver snx_V2.1.0.0
Version V2.1.0.0
Update 2024-10-29 15:49:56
Size 704.9KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
API Hardware Library for Windows
Version 20110623
Update 2022-03-25 11:03:58
Size 3.7MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
API Hardware Library for Linux (snx module)
Version 1.3.1.0
Update 2024-10-16 10:36:59
Size 750.9KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
