P2M16M40

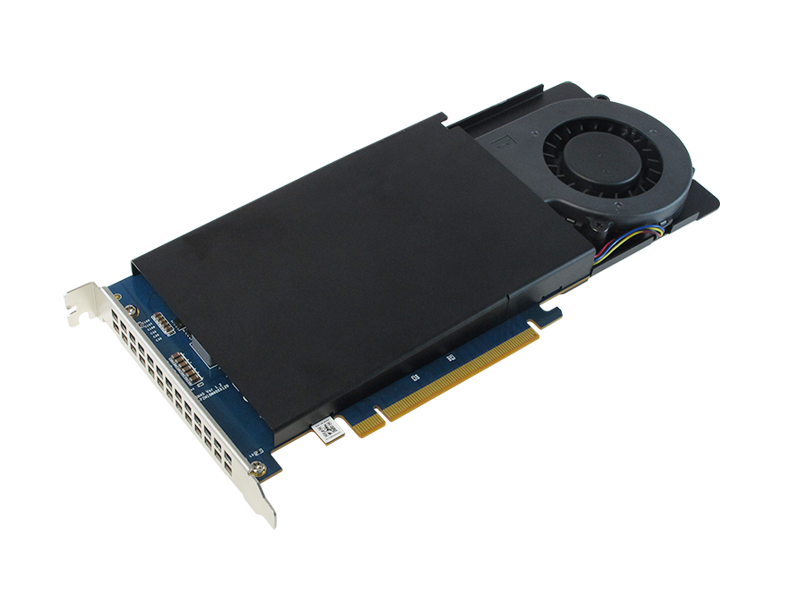

PCIE Gen3 drive Quad Adapter Card
- Maximum bandwidth up to PCIe Gen3 x16 specification.
- Compliant with PCI Express M.2 specification 1.0.
- Supports M.2 modules in format 2280, 2260 and 2242 with Key-M or Key-B+M based on PCI Express communication.
- PCBA layout routing length less than 1.5inch between PCIe and M.2 slot.
- Compliant Full High Profile PCIe bracket.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, BSMI, and RoHS approval.
- Driver free under Windows, Linux, or other operation systems.
- Support PCIe #CLK_REQ pin to M.2 slot.
Note:
SUNIX P2M16M40 card is neither compatible with a M.2 SATA SSD with Key-B, nor M.2 SATA SSD with Key-B+M.
SUNIX P2M16M40 card is neither compatible with a M.2 SATA SSD with Key-B, nor M.2 SATA SSD with Key-B+M.
Motherboard should be compatible PCIe Bifurcation and BIOS should also have an option to enable PCIe Bifurcation x4x4x4x4.
Introduction
SUNIX P2M16M40 PCI Express x16 card expands four M.2 modules (Key-M) into desktop or server PC, allowing user accesses new generation NVM Express interface (Non-Volatile Memory Host Controller Interface Specification) to capitalize on the low latency and internal parallelism of solid-state storage devices. It supports up to four M.2 NVMe SSD storage modules in 2280, 2260, or 2242 format with driver free feature. To maximum the highest performance of M.2 NVMe SSD, this card ensures the PCBA layout routing length less than 1.5inch between PCI Express and M.2 slot. It is the best M.2 quad NVMe SSD adapter card solution for desktop, server, gaming, or industrial applications.
Specifications
| Model | P2M16M40 |
| Description | PCIE Gen3 drive Quad Adapter Card |
| M.2 Interface | M.2 Key-M slot x4 |
| PCIe Interface | PCI Express x16 Gen3 |
| Regulatory Approvals | CE, FCC, VCCI, BSMI |
| Green Environment | RoHS, CRoHS, WEEE |
| Environment |
Operation temp. 0 °C ～ 40 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
| Weight | 250g |
| Dimension | 260(L)x104.85(W)x58.97(H)mm |
Support
Download Datasheet
| Datasheet | P2M16M40 Gen3 Datasheet EN |
|
Download Guide
| Guide | P2M16M40 Quick Installation Guide |
|
