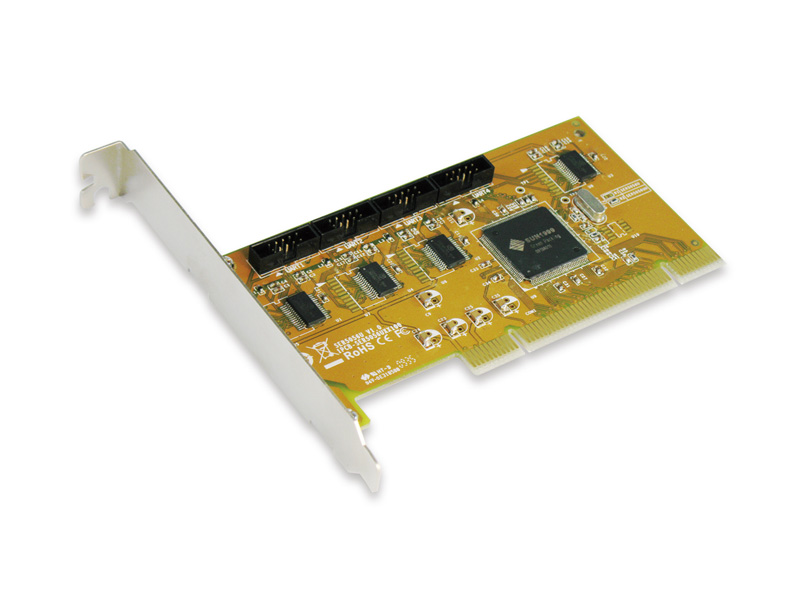

SER5056UH (phased out)
4-port RS-232 High Speed Universal PCI Serial Embedded Type Board
- Expands 4 independent RS-232 serial port with communication speeds up to 921.6Kbps.
- High reliability SUN1999 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- Ideal for embedded computing applications.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
SUNIX SER5056UH, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5056UH card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Specifications
Description |
|
Product Description | 4-port RS-232 High Speed Universal PCI Serial Embedded Type Board |
Serial Communication |
|
Interface | RS-232 |
Controller | SUNIX SUN1999 (16C950 UART Compatible) |
Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
No. of Port | 4-port |
IRQ & IO | Assigned by System |
FIFO | 128 byte (Hardware) |
Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
Baud rate | 50 bps to 921.6 Kbps |
Data bit | 5,6,7,8 |
Stop bit | 1,1.5,2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, Xon/Xoff, RTS/CTS |
Protection |
±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
PCB connector | Pin Header (pitch 2.0mm) |
Driver Support |
|
Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 |
Windows Server | 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
Linux | Linux 2.x / 3.x / 4.x / 5.x |
DOS | DOS |
*UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
*IBM OS/2 | WARP 3/WARP 4 |
"*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
Hardware | CE, FCC, VCCI, BSMI |
Software |
Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11 • Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64) |
Environment |
|
Operation Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% RH |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
PCB Dimension | 120 x 64 mm |
Bracket | Standard 121 mm |
Bracket Space | 1 |
Accessories
Including Accessories
- 40 cm
- Part No.: 1WDB-44M04009D4003
- 1 pcs.
- 30 cm
- Part No.: 1WDB-09M02610F1E01
Support
Download Manual
Manual | PCI RS-232 Manual - 771-PCI232002-S01 | |
Version | Ver 3.0 | |
Update | 2017-07-24 11:51:36 | |
Size | 1.2MB |
Download Datasheet
Datasheet | SER5056UH-Datasheet V20 |
Download Guide
Guide | PCI RS-232 Quick Installation Guide |
Download Driver
Driver | SUN1999Driver V9.2.2.0(WHQL) | |
Version | 9.2.2.0 | |
Update | 2021-01-05 09:27:46 | |
Size | 9.4MB | |
OS |
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise LTSC 2019 32/64 bit
Windows 10 IoT Enterprise LTSC 2019 32/64 bit
Windows 10 Enterprise LTSB 2016 32/64 bit
Windows 10 S 32/64 bit
|
Driver | SUN1999Driver V8.2.0.0 (WHQL) | |
Version | 8.2.0.0 | |
Update | 2023-01-12 13:34:21 | |
Size | 4.4MB | |
OS |
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 SP2 32/64 bit
Windows Embedded Standard 7 SP1 32bit/64bit
Windows Embedded POSReady 7 32bit/64bit
|
Driver | SUN1999Driver V8.1.5.0 (WHQL) | |
Version | 8.1.5.0 | |
Update | 2023-01-11 17:08:11 | |
Size | 4.5MB | |
OS |
Windows XP SP3 32 bit
Windows Server 2003 R2 SP2 32bit
Windows XP Embedded SP2
Windows Embedded POSReady 2009
|
Driver | WinCE 6.0 Driver V1.2.0.0 | |
Version | 1.2.0.0 | |
Update | 2019-07-08 17:59:12 | |
Size | 301.2KB | |
OS |
Windows CE 6.0
|
Driver | WinCE 5.0 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:02 | |
Size | 280KB | |
OS |
Windows CE 5.0
|
Driver | WinCE 4.2 Driver V1.1.0.0 | |
Version | 1.1.0.0 | |
Update | 2019-07-08 18:00:47 | |
Size | 235.6KB | |
OS |
Windows CE 4.2
|
Driver | SUN1999/2000 Linux Inbox Driver User Guideline | |
Version | 1.0 | |
Update | 2022-05-31 17:59:20 | |
Size | 1.2MB | |
OS |
Linux Kernel 5.4 above
|
Driver | snx_V2.1.0.0 | |
Version | V2.1.0.0 | |
Update | 2024-10-29 15:49:56 | |
Size | 704.9KB | |
OS |
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.x / 6.x
|
Driver | SUNDOS1.00.00.006 | |
Version | 1.00.00.006 | |
Update | 2014-08-19 10:36:25 | |
Size | 21KB | |
OS |
DOS
|
