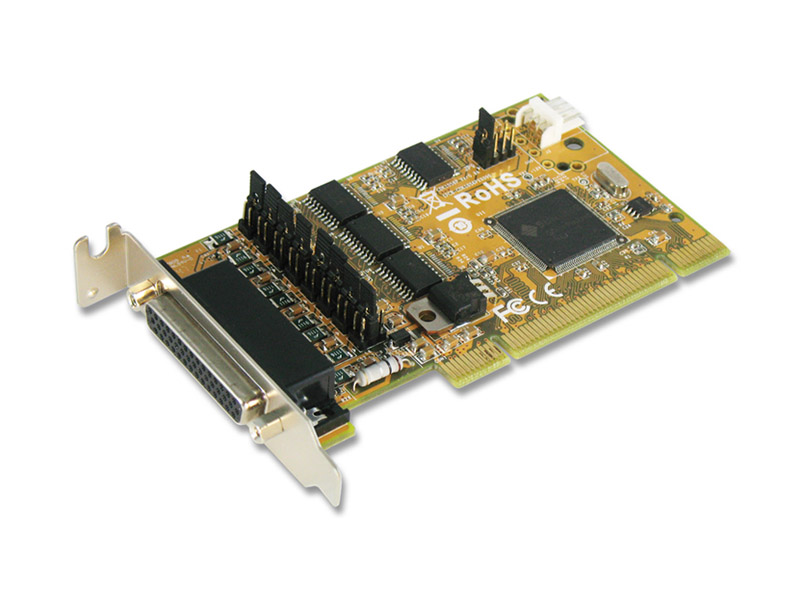

CDK1056PL

4-port RS-232 with Power Output & Cash Drawer interface & DC Jack Low Profile Universal PCI Board
  • Expands four independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • Expands single 6-pin RJ11/12 Type Cash Drawer interface to drive +12 / 24VDC Cash Drawer.
  • Expands single +12VDC Power Jack to connect POS peripheral, such as touch display.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 2KV ESD protection for all serial signals.
  • Low profile bracket design idea for slim or portable PC.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • SUNIX Windows based APIs for user easily implement Cash Drawer operation.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows and Linux.

Introduction

A cash drawer is generally a compartment underneath a cash register in which the cash from transactions is kept. When a transaction that involves cash is completed, the register sends an electrical impulse to a solenoid to release the catch and open the drawer.

Recently, due to heavier computing demands and the falling price of computer-like architectures, Point of sale (POS) systems have moved away from custom hardware architectures adopting of a personal computer and use common personal computer operating systems. The crux of a problem is that standard PC does not equip any cash drawer interface. Supplier needs using a particular thermal printer with additional cash drawer IO connectivity. From now on, SUNIX provides cost-efficient solutions to expand cash drawer interface to drive the cash drawer by installing standard PCI add-on card.

SUNIX CDK1056PL, Universal PCI serial communication board, allows users to expand four RS-232 DB9M COM ports, one Cash Drawer 6-pin RJ-11/12 socket, and one +12VDC power jack on PC-based system. The board is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. This card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. CDK1056P supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply. For the cash drawer interface, user can operate both +12 and +24 Voltage cash drawers by implemented SUNIX Windows based API (Application Programming Interface). Both RS-232 and Cash Drawer interface are designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial retail automation applications.

Specifications

Serial Communication

Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, GND, 5V/12V/ DCD, +5V/12V/R
Controller SUNIX SUN1999
(16C950 UART Compatible)
Baud rate 50bps ~115.2Kbps
BUS Universal PCI 64/32bit 3.3V/5V
PCI Ver 3.0, 2.3, 2.2, 2.1
Stop bit 1, 1.5, 2
No. of Port 4-port Parity even, odd, none, mark, space
IRQ & IO Assigned by System Flow Control Xon/Xoff (software)
FIFO 128byte Hardware PCB Connector DB9 Male
Protection ±2KV ESD protection for each signal Human Body Model (HBM)

Cash Drawer Communication

Interface RJ11/12 (6-pin)
EPSON Printer Compatible
Output +12VDC

Power Output

DC Power Jack Output DC Jack +12VDC / 3A  (depends on system power supply ability)
COM port Output +5 or 12VDC / 1A      (depends on system power supply ability)

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x / 5.3
DOS DOS
*UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris
*IBM OS/2 WARP 3/WARP 4
"*" marked as a project supported operating system. Please contact us if you have any further need.

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 69 mm
Bracket Low Profile 80 mm
Bracket Space 1

Accessories

Including Accessories

DB44 Male to 4-port DB9 Male, RJ11 & DC Jack Cable
  • 40cm
  • Part Number:1WDB-44M04009C3T10
  • 1 pcs.

Support

Download Datasheet

Datasheet CDK1056PL-Datasheet-V10

Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL)
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version 8.2.0.0
Update 2019-07-08 16:23:37
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 7
Driver SUN1999Driver V8.1.5.0 (WHQL)
Version 8.1.5.0
Update 2019-07-08 16:26:08
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Windows Embedded POSReady 2009
Driver WinCE 6.0 Driver V1.2.0.0
Version 1.2.0.0
Update 2019-07-08 17:59:12
Size 301.2KB
OS
Windows CE 6.0
Driver WinCE 5.0 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:02
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2 Driver V1.1.0.0
Version 1.1.0.0
Update 2019-07-08 18:00:47
Size 235.6KB
OS
Windows CE 4.2
Driver SUN1999 Linux Inbox Driver
OS
Linux Kernel 5.4 above
Driver snx_V2.0.5.0
Version 2.0.5.0
Update 2021-04-07 18:07:37
Size 57.7KB
OS
Linux Kernel 2.4.x / 2.6.x / 3.x / 4.x / 5.3
Driver SUNDOS1.00.00.006
Version 1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
