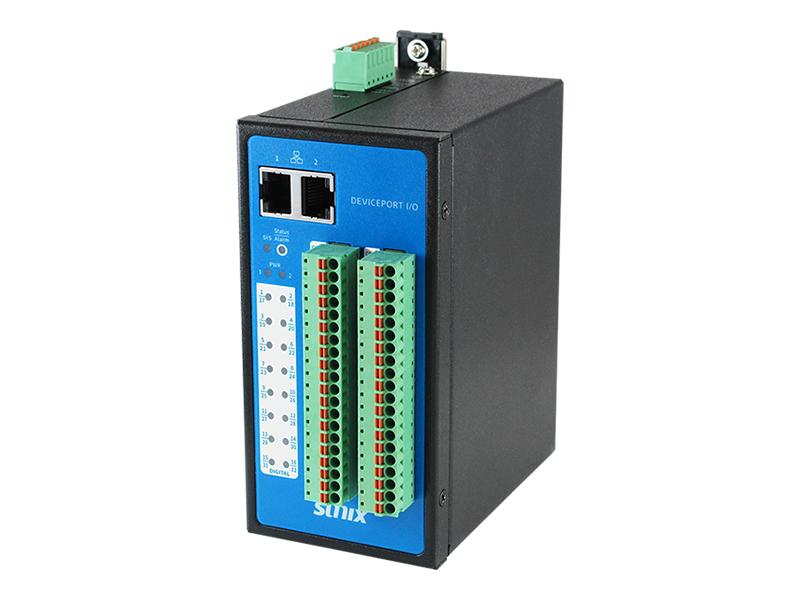

EZIDIDIFF

32-ch Digital Input Industrial DevicePort I/O
  • 32-ch digital-in
  • Built-in with SUNIX High-Performance Ethernet-IO controller
  • Built-in dual 10/100 Ethernet ports for Ethernet cascading capability
  • IP setting not required, enabling convenient and quick deployment configuration
  • Supports daisy chain network topology for flexible and quick I/O expansion
  • Automatic device enumeration mechanism facilitates terminal device networking
  • Supports wall or rail (DIN) mounted

Introduction

SUNIX EZIDIDIFF utilizes SUNIX EAZInet networking technology to quickly expand 32 digital input signals via Ethernet, allowing users to conveniently implement automation, swiftly incorporate the Internet of Things into their businesses, and raise their competitiveness.
SUNIX EZIDIDIFF does not require IP setting and supports full network topology, which substantially lightens the burden of network planning and management, shortens the hardware deployment process, and enables subsequent expansions to be executed more flexibly.
SUNIX EZIDIDIFF is capable of automatic device enumeration, which allows the console terminal to quickly search for terminal devices, thus enabling plug-and-play functionality. This greatly improves the convenience of system development for users.

Specifications

Digital Input

Channels 32 channels
Dry Contact Logic Level 0: Open
Logic Level 1: Close to GND
Wet Contact Logic Level 0: 0 to 3V
Logic Level 1: 10 to 50V
Input Resistance 10㏀
Isolation 1k VDC
Over-Voltage Protection 70VDC

Power Requirements

Input Voltage 5 to 48 VDC
Connector 6 PIN Terminal Block
*Support 2 ports input power & relay output
*Support OVP
Note: the high-voltage power input priority first ,when multiple power inputs

LAN

Ethernet 2-port 10/100 Mbps RJ45 ports
Protection 1.5 KV magnetic isolation
Protocols SUNIX EAZInet

Environmental Limits

Operation Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 10 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)

Standards and Certifications

Hardware
CE, FCC, VCCI, BSMI

Physical Characteristics

Dimensions
66.0 x 147.6 x 131.1 mm (2.60 x 5.81 x 5.16 in)
Weight 755g +-5%
Mounting DIN rail or wall

Accessories

Including Accessories

Din rail mounting kit
  • Partner No.:5011-TRACK2C00-QCN
  • 1 pcs

Support

Download Datasheet

Datasheet EZIDIDIFF Datasheet EN

Download Guide

Guide Digital Input / Output & Analog Input Industrial DevicePort I/O Quick Installation Guide

Download Driver

Driver DevicePortAdvanced V4.0.6.0_20220601
Version Ver 4.0.6.0
Update 2022-06-06 16:12:01
Size 5.5MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
API EAZINET API V1.0.5.0
Version V1.0.5.0
Update 2022-04-15 17:22:45
Size 5.4MB
OS
Windows 11 64bit
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
