DPKX02H00 (phased out) (Replacement: DPAS02H00)

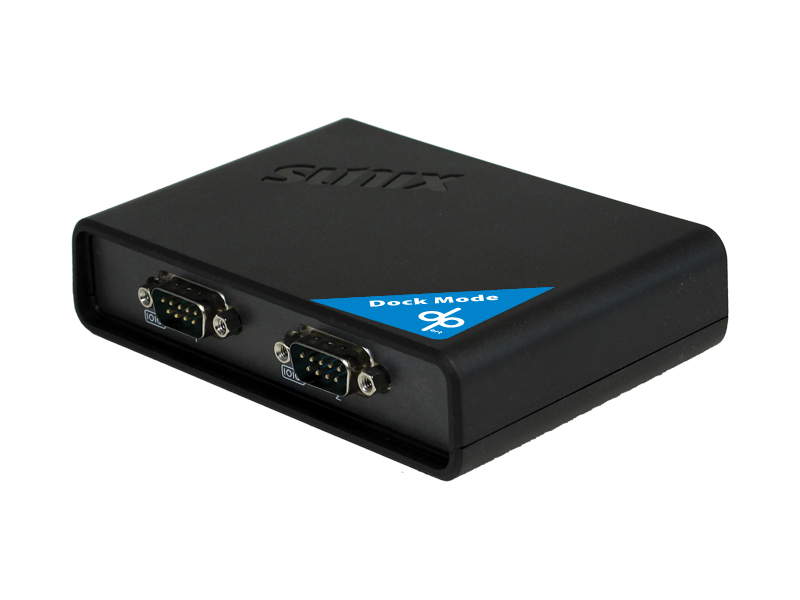

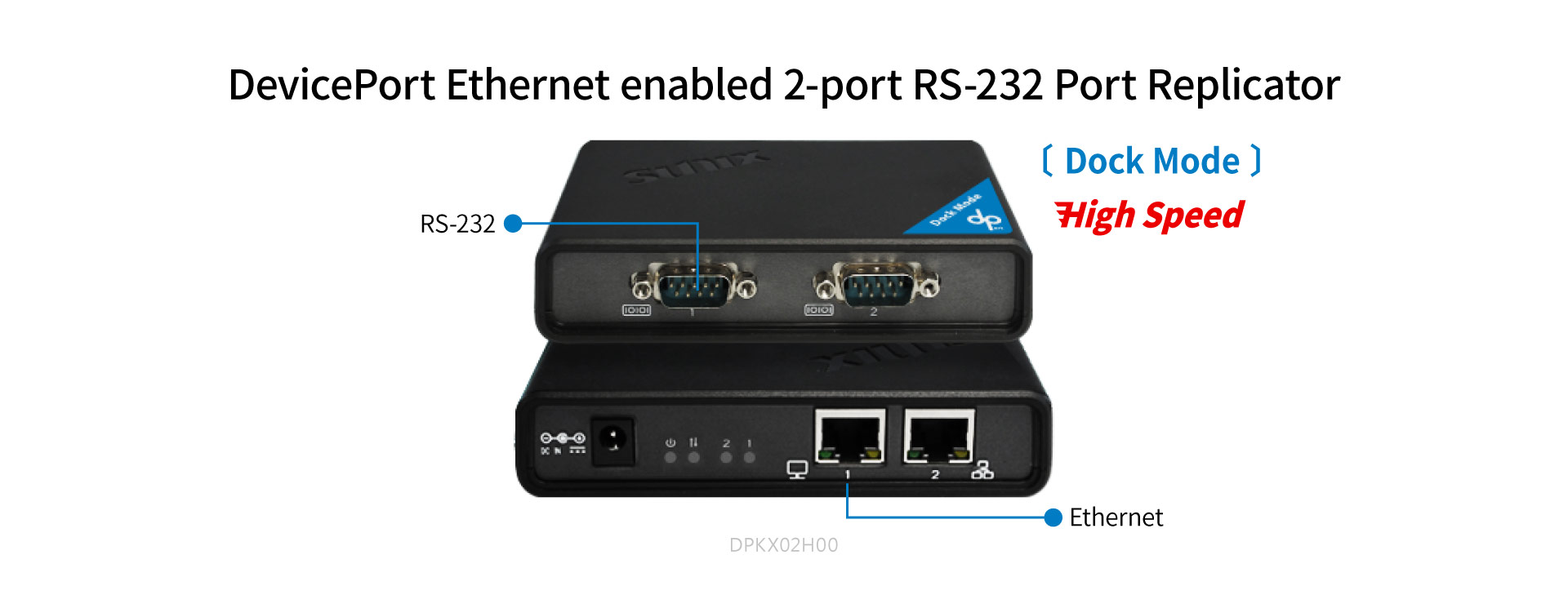

DevicePort Dock Mode Ethernet enabled 2-port High Speed RS-232 Port Replicator
  • Expands 2 independent RS-232 serial ports over Ethernet.
  • Communication speeds up to 921.6 Kbps.
  • Real-Time data transmitting (Real COM) without complicated IP setup.
  • COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
  • Compatible with existing software and AP.
  • To make wiring simple, fast, and more space efficient.
  • Easy maintenance with Fixed COM number and Hot-Swap.
  • Built-in SUNIX DPL2000Q high performance controller.
  • DevicePort Dock mode supports secured connection between PC host and DevicePort.(*Note 1)
  • Supports Daisy Chain Topology and maximum 12 COM ports expansion.
  • Data buffer prevents any unforeseen data loss during a connection failure.
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • Low power consumption design for Green Environment.
  • Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

Introduction

SUNIX DevicePort is the ideal choice to enable your current Legacy I/O devices networking. DPKX02H00 allows users to expand two high speed RS-232 ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O redirection technology, DevicePort® creates physical COM ports that support real time data communication and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications.

Features








Film

Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~921.6Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 2-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line

Ethernet Communication

Number of Ports 2-port (*Note 1)
Upstream to Ethernet Switch
Downstream to PC Host
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Power Requirements

Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack

Driver Support

Windows Client XP / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)

Regulatory Approvals

Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Microsoft Client: XP/7/8/8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)

Environment

Operation Temperature 0 to 45°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)

Physical Characteristics

Housing ABS, PC, Metal
Weight 145g
Dimensions 121x81.93x27(mm), 4.7x3.2x1.0(inch)

Note:
 1. To prevent on-line spy recording, DevicePort Dock Mode limits specific Ethernet port connection, and it does not works on switch or router operation.

Accessories

Including Accessories

Power Jack to USB TyepA Male Cable
  • (ψ5.5 *ψ2.0 / 120cm)
  • Partner No.: 1WDC-Y1120G4100000
  • 1 pcs

Support

Download Manual

Manual DevicePort Dock RS-232
Version Ver 2.0
Update 2015-11-12 09:42:28
Size 2.1MB

Download Datasheet

Datasheet DPKX02H00 Datasheet
