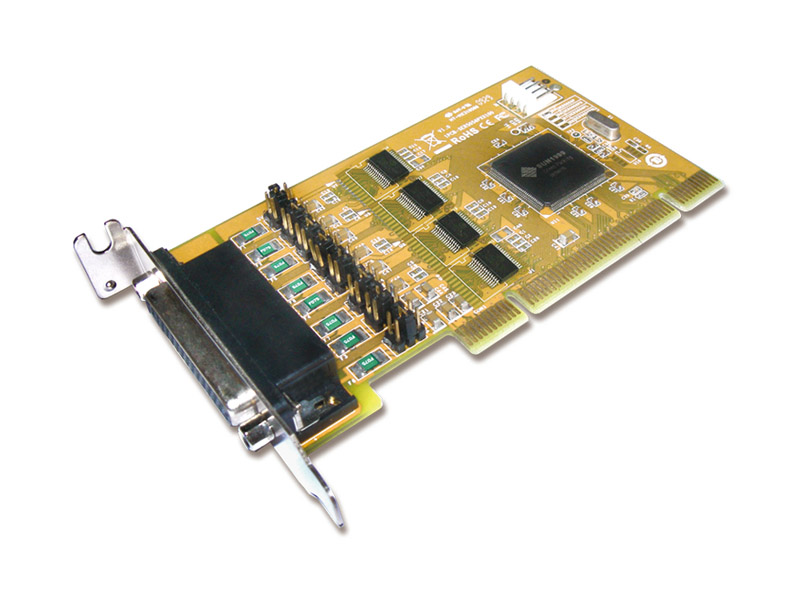

SER5056PHL

4-port RS-232 High Speed Universal PCI Low Profile Serial Board with Power Output
  • Expands 4 independent RS-232 serial port with communication speeds up to921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX SER5056PHL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. This board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX SER5056PHL is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing this multi-port card to be installed in any slim size PC-based system with low profile bracket structure. Furthermore, SUNIX SER5056PHL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

Description

Product Description 4-port RS-232 High Speed Universal PCI Low Profile Serial Board with Power Output

Serial Communication

Interface RS-232
Controller SUNIX SUN1999 (16C950 UART Compatible)
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 4-port
IRQ & IO Assigned by System
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, GND, 5V/12V/ DCD, 5V/12V/RI
Baud rate 50 bps to 921.6 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB connector DB44 Female

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x
DOS DOS
FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0
* IBM OS/2 WARP 3/WARP 4
* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems Solaris 10
Note : “ * ” Supported by special inquiry.

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 68 mm
Bracket Low Profile 80 mm
Bracket Space 1

Accessories

Including Accessories

DB44 to 4-port DB9 Male Connection Cable
  • 40 cm
  • Part No.: 1WDB-44M04009D4001
  • 1 pcs.

Support

Download Manual

Manual PCI Powered RS-232 Manual-771-PCIPOW002-S01

Download Datasheet

Datasheet SER5056PHL Datasheet

Download Guide

Guide PCI RS-232 Quick Installation Guide

Download Driver

Driver SUN1999Driver V9.0.3.0 (WHQL)
Version Ver 9.0.3.0
Update 2018-06-28 16:16:36
Size 9.2MB
OS
Windows 10 RS4 32/64 bit
Windows 10 RS3 32/64 bit
Windows 10 RS2 32/64 bit
Windows 10 RS1 32/64 bit
Windows Server 2016 64bit
Windows 10 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
Driver SUN1999Driver V8.2.0.0 (WHQL)
Version Ver 8.2.0.0
Update 2016-03-18 09:38:47
Size 4.8MB
OS
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Embedded POSReady 2009
Driver SUN1999Driver_V8.1.5.0
Version Ver 8.1.5.0
Update 2018-04-20 13:33:07
Size 4.5MB
OS
Windows XP SP3 32/64 bit
Driver WinCE 6.0 Driver V1.2.0.0
Version V1.2.0.0
Update 2013-09-11 15:40:33
Size 301.7KB
OS
Windows CE 6.0
Driver SUN1999Driver V7.2.0.0 (WHQL)
Version V7.2.0.0 (WHQL)
Update 2013-12-02 18:00:44
Size 4.3MB
OS
Windows 2000
Driver Wince5.0
Version Ver.1.1.0.0
Update 2011-06-10 11:50:29
Size 280KB
OS
Windows CE 5.0
Driver WinCE 4.2_ Driver_V1.1.0.0.zip
Version Ver.1.1.0.0
Update 2011-06-10 11:50:00
Size 236KB
OS
Windows CE 4.2
Driver snx_V2.0.4.3
Version Ver 2.0.4.3
Update 2017-11-22 18:01:14
Size 70.9KB
OS
Linux 2.4x/2.6x/3.x/4.x
Driver SUNDOS1.00.00.003.zip
Version V1.00.00.006
Update 2014-08-19 10:36:25
Size 21KB
OS
DOS
