VGA0011

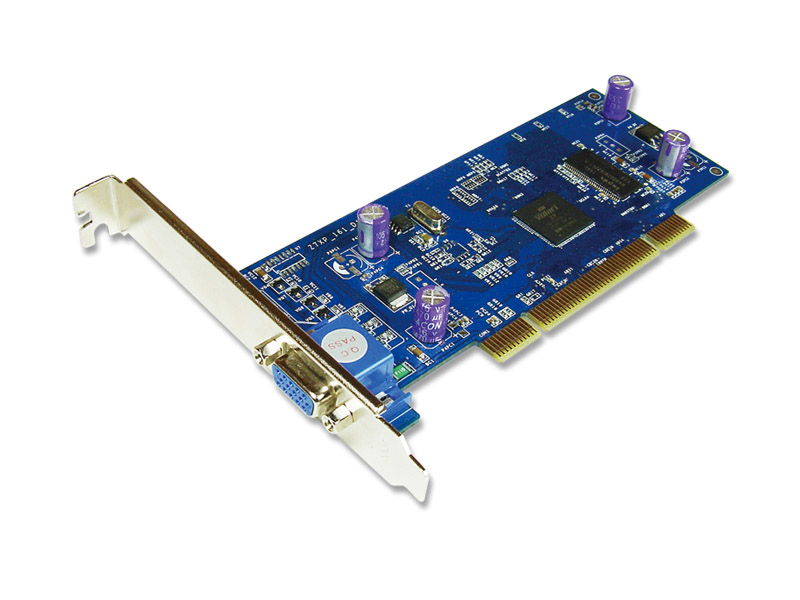

VGA0011 graphics card
  • Fully compliant with PCI 2.2 33/66MHz specification.
  • Max 2D resolution 32-bit1280x1024 @60Hz and 16-bit 1600x1200 75@Hz.
  • Max color depth up to 16.7 Million Colors.
  • Ultra-low power 1.4W consumption makes heat sink free.
  • Supports a variety server and embedded OS.
  • Certified by CE, FCC, VCCI, BSMI, and RoHS.

Introduction

SUNIX VGA0011 graphics card which built-in XGI Volari Z7 chipset is a fan less and none heat sink design for user easily using in kinds of embedded or critical environment applications. With high quality 2D 1600x1200 resolutions,16.7M colors output, various drivers supporting, PCI Bus cost efficient design, and low profile slim size dimensions, SUNIX VGA0011 is the high value and reliable graphics solution for server and cost conscious systems, such as servers, Thin Clients, POS system and industrial PC.

Specifications

Interface PCI 2.2 33/66MHz
IC XGI Volari Z7
Memory 16MByte DDR RAM
Port type D-SUB RGB Connector
Power Consumption 1.4W
Certified EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
O.S Support Windows 2000 / XP
Windows Server 2000 / 2003 (WHQL) /Vista< br /> Windows CE 4.2 / 5.0
Linux RHEL / Fedora / Suse / RedFlag /Turbo Linux / Debian / Miracle
Others FreeBSD / Solaris / NetWare / DOS

Environment :

-10 C ~ 85 C
-20 C ~ 90 C
5 ~ 95% RH

Support

Download Datasheet

Download Driver

Driver Z7Z9.zip
Version Ver.1.26.19.00
Update 2010-08-17 04:25:54
Size 30.0MB
OS
Linux 2.4x/2.6x/3.x
Driver VGA0011.zip
Version R1. 10. 01
Update 2009-12-02 01:53:21
Size 8.5MB
OS
Windows XP
Windows Server 2003 32/64 bit
Server2008 32-bit
Windows Server 2008 64-bit
Windows Vista
