CDSX02D00

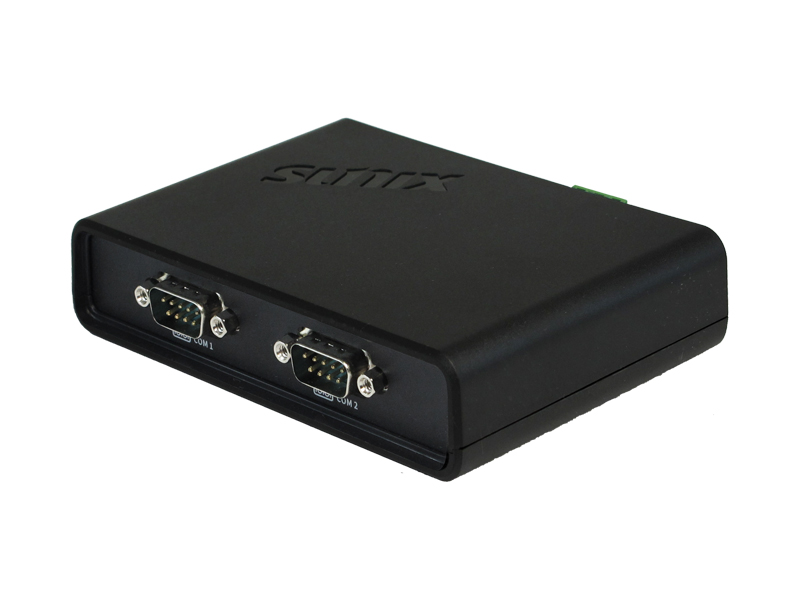

Serial Device Server Dual High-speed RS232 Port Serial to Ethernet
  • Dual RS232 serial ports via an Ethernet network.
  • Single 10/100 built-in Ethernet port.
  • Real COM, TCP Server, TCP Client, UDP, and Pair Connection operation modes.
  • Full Telnet, Web console, and Windows utility support.
  • IEC 61000-4-2 compliant serial ports for ESD immunity.
  • DC power and terminal (5 to 24 VDC) connection support.

Introduction

The CDSX02D00 can connect up two RS232 serial devices to a network. The basic function of a serial device server is to connect your existing serial devices to a network, allowing you to conveniently connect your serial devices to an Ethernet network. You can not only retain your existing hardware resources, but also ensure that future network expansions can be implemented. Furthermore, SUNIX's serial device servers can easily perform two-way data transmissions between serial and Ethernet networks, allowing you to centrally manage your serial devices and carry out the decentralized management of hosts in networks.

SUNIX's serial device server offers a variety of different operating modes for different serial ports. The product is highly suited for remote data reading, data processing, and multipoint transmissions that need to go through TCP/IP networks.

Specifications

Serial Communication

Interface RS232 Baud rate 50bps ~921.6Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 2 ports Flow Control
Xon/Xoff (software control)
RTS/CTS (hardware control)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal RS232: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±2KV ESD IEC61000-4-2 Level2 Line-to-Line

Software

Network Protocols ICMP, IPv4, TCP, UDP, Telnet, ARP/RARP, HTTP, DHCP
Configuration Options Web Console、Windows Utility、Telnet Console
Windows COM Drivers Microsoft Client: Windows Vista / 7 / 8.1 / 10 (x86/x64)
Microsoft Server: Windows Server 2008 / 2012R2 (X64)

Ethernet Communication

Number of Ports Single Ethernet port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection Built-in 1.5K

Power Requirements

Input Voltage 5V ~ 24VDC
Power Consumption 12W @ 12VDC
Connector
Terminal/DC barrel power jack

Environment

Operation Temperature 0 to 60°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 75°C (-4 to 167°F)

Physical Characteristics

Body case ABS
Weight 800 g
Dimensions 121 x 81.93 x 27 mm / 4.7 x 3.2 x 1.0 in

Support

Download Manual

Manual CDS Series Quick Installation Guide

Download Datasheet

Datasheet CDSX02D00 Datasheet

Download Driver

Driver DeviceServer Driver V1.0.15.0 (Firmware upgrade to ver 1.F)
Version Ver 1.0.15.0
Update 2018-11-06 15:41:41
Size 4.8MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Firmware IDS_MT0_v2_0
Version Ver 2.0
Update 2019-04-30 14:41:28
Size 4MB
OS NULL
